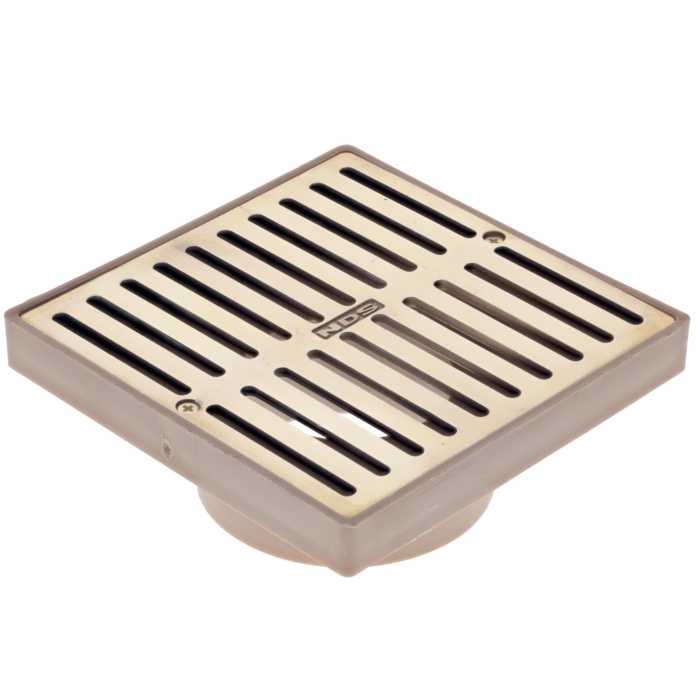

NDS Square Grate with Styrene Adapter, 6" Polished Brass Grate, 3" or 4"

Product Details: NDS Square Grate with Styrene Adapter, 6" Polished Brass Grate, 3" or 4"

The NDS Square Grate with Styrene Adapter, 6" Satin Brass, 3" or 4" grate is a durable, maintenance-free grate that provides a pleasant aesthetic to any hardscape. The grate is rated for Class A loads (1-60 PSI) and can accommodate 8.2 gallons of water per minute, making it a perfect choice to divert water away from problem areas. The PVC collar fits 3" drain pipe and 4" sewer and drains fittings, allowing it to be easily adapted to any system. This pleasant aesthetic fits many design choices at a desirable price range, making it a no-brainer for your next project!

Quick Look

• Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
• Material Grate: Polished Brass
• 3/8" Grate Opening
• Load Recommendation: Class A Load Rated (1-60 PSI)
• Opening: 11.60 in² open space
• Will accommodate 35.49 gallons per minute with 1/2” of head
• Fits: 3”: Corrugated, ABS, Sch-40, ASTM D-2729, Sch-80, Class 125, Class 100 pipe 4: SDR-35, Double wall, ASTM D-2729, Class 100 pipe
• ADA Compliant

Additional Resources

Installation Instructions
