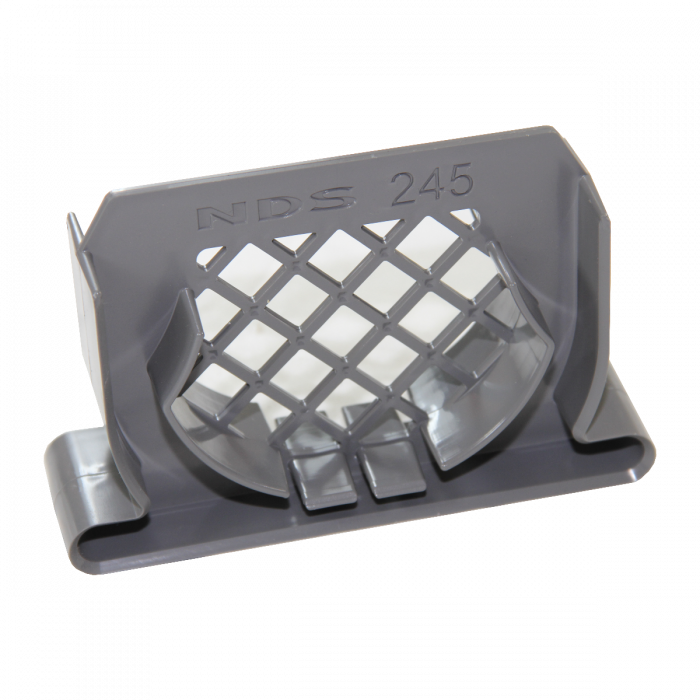

NDS Spee-D Channel Strainer Coupling

Product Details: NDS Spee-D Channel Strainer Coupling

The NDS Spee-D Channel Strainer Coupling is part of the modular NDS Spee-D Drainage System. The product is constructed with durable lightweight and easy-to-install PVC material. This product features a strainer basket that helps to prevent clogging and promote efficient water flow within the drainage system. Each NDS Spee-D Channel Strainer Coupling is chemically resistant and rustproof. NDS Spee-D Channel Strainer Couplings are a proven better alternative to traditional concrete drains that can be used for commercial as well as residential applications. Don't hesitate to call in directly to speak to an expert if you wish for personal assistance.

Quick Look

• High Density Foam Polyolefin
• Sections of Spee-D Channel can be connected together using the either the Channel Strainer Coupling (NDS part # 245) or the Channel Coupling (NDS part # 248)
• UV Inhibitors
• Chemically resistant, rustproof and maintenance-free
• ADA Compliant
• The channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete
• Create a water-tight connection between channels and from outlet to pipe using solvent-weld PVC glue
• Product Class: 25PF
• The channel itself will hold about the same volume of water as a 4” diameter pipe
• NDS part # 245 connects to 2” schedule 40 pipe and part # 249 connects to both 3” sewer and drain pipe and 4” sewer and drain fittings
• Use with Spee-D 45º and 90º Elbows, Tees, Crosses, and Outlets to customize your layout
• Class B Load Rated (61-175 PSI)
• Spee-D Channel is available in 4 foot and 10 foot sections. The channel can be easily cut to any length. Call In Directly for our NDS 10 FT Spee-D Channel Drain Pricing

Additional Resources

Installation Instructions
