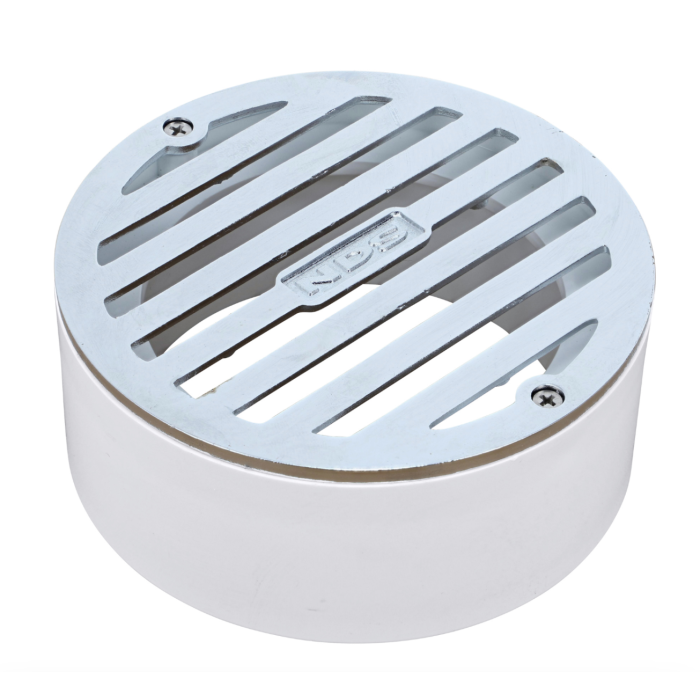

NDS Round Grate with PVC Collar, 4" Polished Chrome, 3" or 4"
66,85 US$
Disponible
SKU
908PC
- Comprar 10 por 62,17 US$ cada uno y ahorra 7%
Dimensions:Length: 4-1/4" x Width: 4-1/4" x Height: 1-3/4"
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS Round Grate with PVC Collar, 4" Polished Chrome, 3" or 4"
This Round Grate with PVC Collar can be used to drain surplus water and direct it to a more water-safe area such as a curb or gutter. The NDS Round Grate with PVC Collar, 4" Satin Chrome, 3" or 4" can be used with 3" Sewer & Drain Pipe, 4" Sewer & Drain Fittings.
Quick Look
- Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
- ADA Compliant
- Material: Polished Chrome grate & brass screws w/ PVC collar
- Grate Openings: 5.25 in squared open space
- Open Surface Area: 5.25 square inches
- Fits: 3" ASTMD2729 & Triple Wall pipe, 4" Sewer and Drain Fittings
- Will accommodate 16.06 gallons per minute with 1/2†head
- Load Recommendation: Class A Load Rated (1-60 PSI)
Additional Resources
NDS Round Grate with PVC Collar, 4" Satin Chrome, 3" or 4" Technical SpecificationsHow To Install A Area Drain
| Brand | NDS |
|---|---|
| Longitud | 4-1/4" |
| Anchura | 4-1/4" |
| Altura | 1-3/4" |
| Apertura de rejilla | 1/4" |
| Área de superficie abierta | 5.25" Squared |
| Galones por Minuto | 16.06 GPM |
