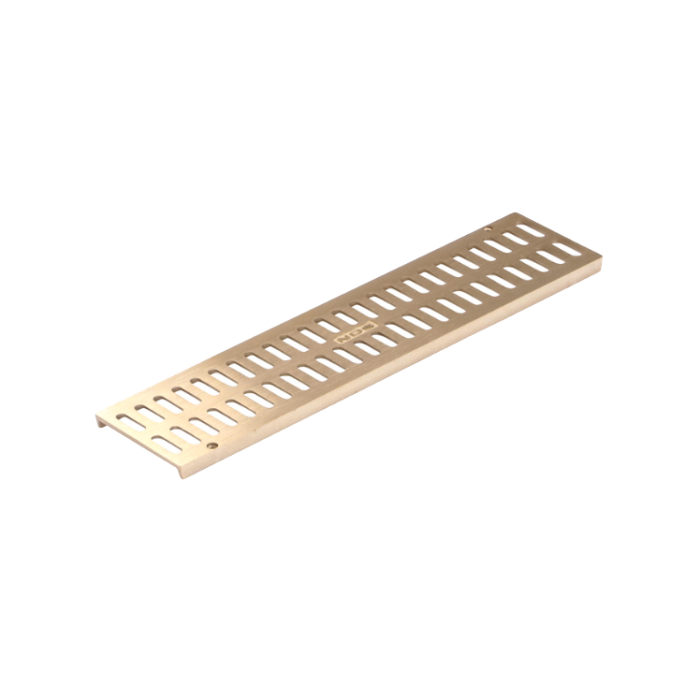

NDS Mini Channel Grate, Satin Brass (12" Length)

Product Details: NDS Mini Channel Grate, 12" Satin Brass

NDS 12" Mini Channel Grate - Satin Brass grates are a crucial part of the NDS Mini Channel drainage system. The channel grates fit securely into the channel drain (#500) via Two brass screws (Included with Grate). Mini channel grates collect and remove excess water from outdoor areas, including driveways and patios, and are durable enough for light vehicular traffic. They are UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. With NDS Mini Channel, protecting your investment with high-quality, easily configurable drainage is simple and stylish.

Quick Look

• Recommended for pedestrian traffic
• Use With NDS Mini Channel Drains (#500)
• 1/4" x 7/8" Grate Opening
• Dimensions: 12" LENGTH x 2-13/16" WIDTH x 3/8" HEIGHT
• Will accommodate 28.14 gallons per minute per foot with 1/2” of head
• ADA Compliant
• Channel Grates can be screwed to the channel using brass Screws (2 per grate, screws included)
• Load Recommendation: Class A (0-61 PSI / 3,800 lbs per foot)
• Material: Satin Brass
