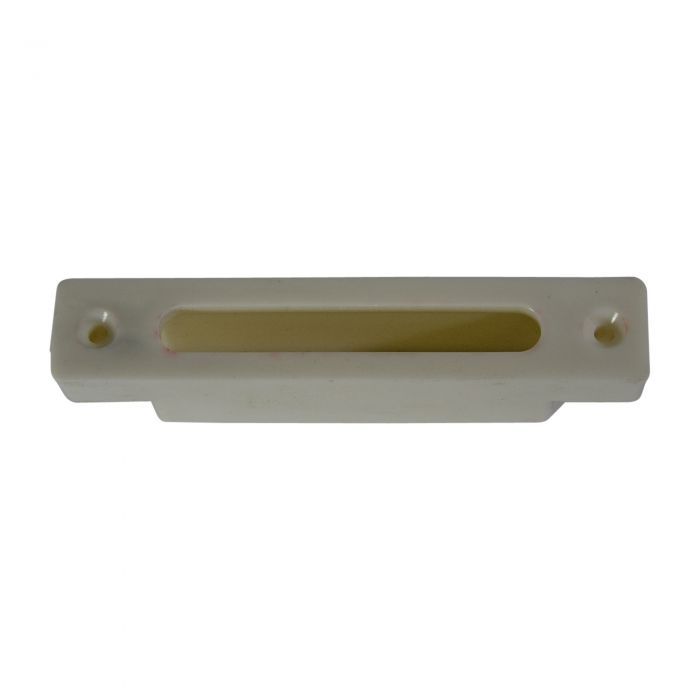

NDS Dura Slope Radius Coupling Grate, Plastic Slotted

Product Details: NDS Dura Slope Radius Coupling Grate, Plastic Slotted

Designed specifically for draining 400-meter running tracks, Dura Slope Radius Couplings allow 3 degrees of deflection between trench drain sections, making an adjustable radius easily achievable for standard tracks and other curving applications.

Quick Look

• Class B Load Rated(65-175 PSI)
• ADA Compliant
• Material: High Density Polyethylene (HDPE)
• Grate Opening: 1.88 Sq. Inch Per Each
• UV Inhibitors
• Open Area between Grates; 3/8√¢‚Ǩ¬ù x 6√¢‚Ǩ¬ù= 2.25 Sq. Inches
• Head Pressure / Flow Rate: 1.0√¢‚Ǩ¬ù = 160.83 GPM Per Foo
• Product Class: 25DS

Additional Resources

Installation Instructions
