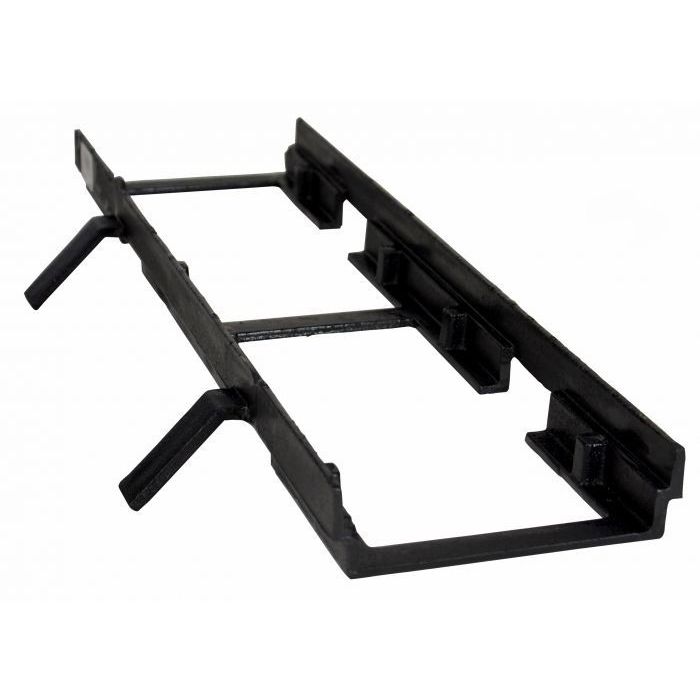

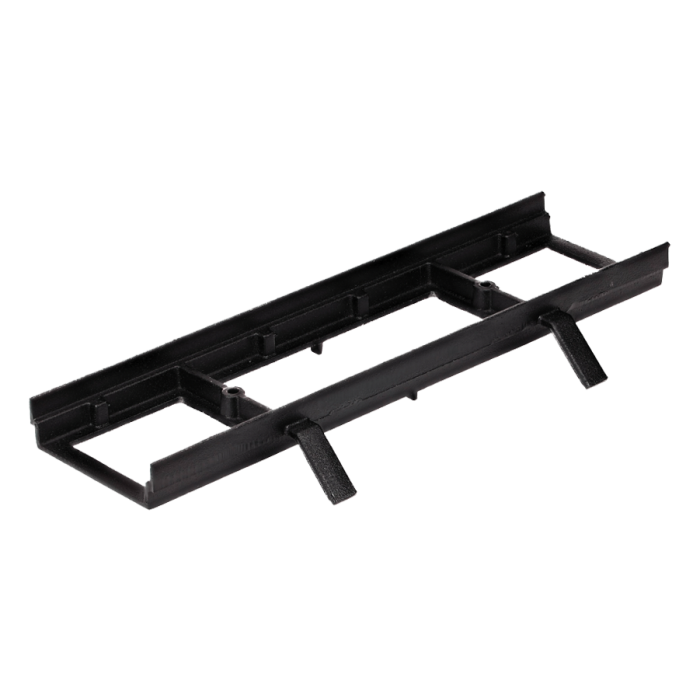

NDS Dura Slope Ductile Iron Frame

Product Details: NDS Dura Slope Ductile Iron Frame

NDS Dura Slope trench drain system consists of neutral and pre-sloped sections of the trench drain. Manufactured from High-density polyethylene, NDS Dura Slope Trench Drains offers a dependable alternative to concrete channels that will save time all while reducing the cost of installation. The NDS Dura Slope Trench Drain system consists of lightweight, modular sections for easier handling and installation causing a reduced price for freight to the site NDS Dura Slope Trench offers many features such as including a ProFit locking system that locks the grate to the integral frame and supports the trench drain during installation. A DuraLoc integral joint lock is also used to prevent joint movement during installation, no extra clamps or screws are needed! Also included are Interlocking tongue and groove joints and a bottom outlet for secure alignment and easy installation on each channel section. This item is used with Dura Slope Trench Drains.

Quick Look

• Dura Slope Ductile Iron Frame provides a Class D load rating of 326-575 PSI
• ADA Compliant
• #DS-122 and #DS-225 are not necessary with the DS-200H Ductile iron Frame
• The ductile iron frame can be used with the cast and ductile iron grates
• Used with NDS Dura Slope Trench Drain, 2 (Two) per channel

Additional Resources

Installation Instructions
