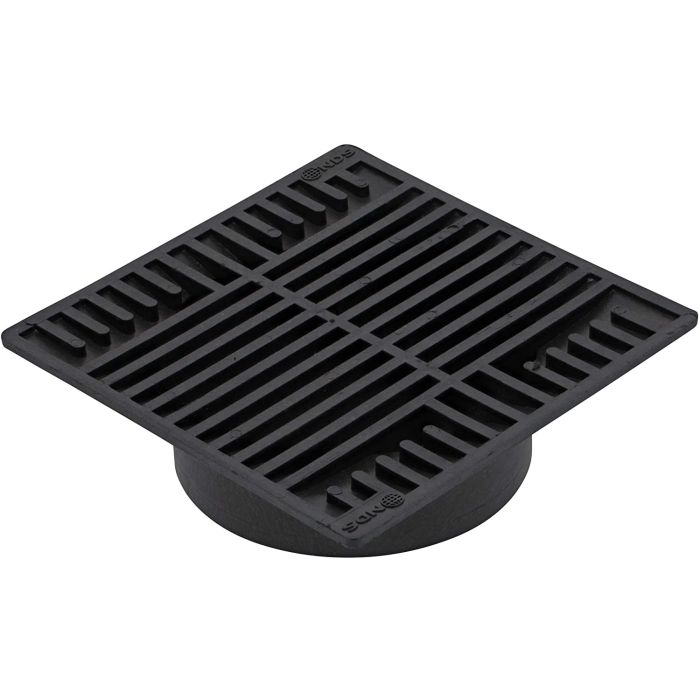

NDS 8" Square Grate

Product Details: NDS 8" Square Grate

The 8" Square Grate is part of the NDS drainage system. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. This grate helps to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic. Can be used with Spee-D® Basin, 6” Sewer and Drain Fittings, 6” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe

Quick Look

• (HDPE) High Density Polyethylene
• Will accommodate 52.49 gallons per minute with 1/2” of head.
• UV Inhibitor
• Grate Opening: 1/4”
• Use with Spee-D® Basin, 6” Sewer and Drain Fittings, 6” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe
• Load Rated : Class A (1-60 PSI)
• ADA Compliant
• Product Class: 10ND

Additional Resources

Installation Instructions
