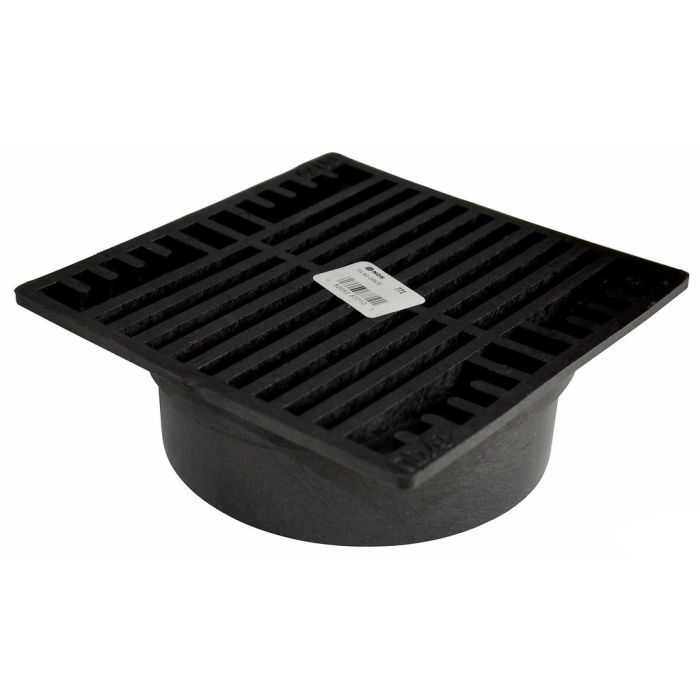

NDS 7" Square Grate

Sea el primero en dejar una reseña para este artículo

As low as 10,60 US$

Disponible

SKU

NDS 771

Dimensions:Length: 6-7/8" x Width: 6-7/8" x Height: 2-3/8"

Color:Black (#771), Gray (#772), Green (#773)

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Details

Product Details: NDS 7" Square Grate

The 7" Square Grate is part of the NDS drainage system. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. This grate helps to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic. Can be used with Spee-D® Basin, 6” Sewer and Drain Fittings, 6” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe

Quick Look

Material: (HDPE) High Density Polypropylene
Open Surface Area: 13.60 Sq. Inches
Equipped with UV Inhibitors
Grate Opening: 1/4”
Use with Spee-D® Basin, 6” Sewer and Drain Fittings, 6” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe
41.60 GPM Capacity
Load Rated : Class A (1-60 PSI)
ADA Compliant

Shop our entire category of Square Grate Products

Additional Resources

How To Fix A Downspout Problem
NDS 7" Square Grate Specifications Sheet
How To Use A NDS Drain On Landscapes

Installation Instructions

Más Información

Más Información
Brand	NDS
Numero de parte	NDS 771
Longitud	6-7/8"
Anchura	6-7/8"
Altura	2-3/8"
Apertura de rejilla	1/4"
Área de superficie abierta	13.60" sq.
Galones por Minuto	41.60 gallons per minute with 1/2” of head.
