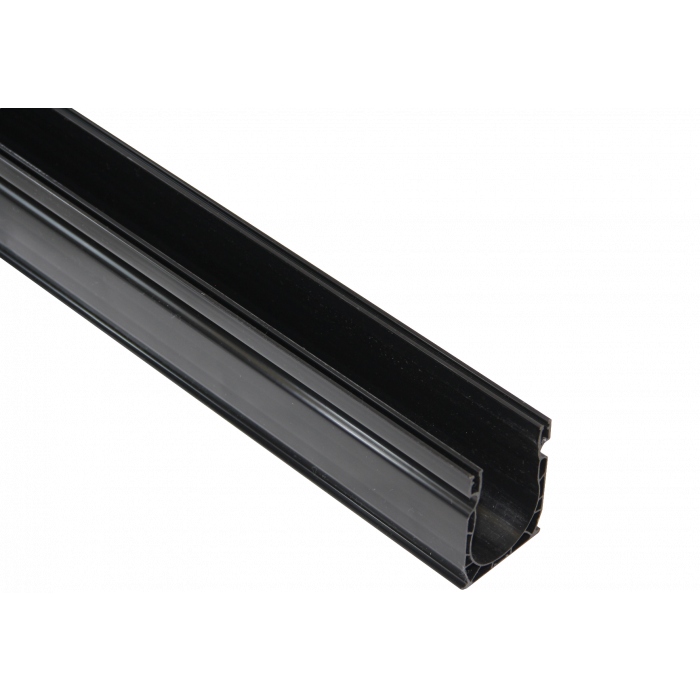

NDS 6' Slim Channel Drain - 3 Foot

12,70 US$
Disponible
SKU
9206-3
  • Comprar 5 por 11,70 US$ cada uno y ahorra 8%

Dimensions: Length: 72" x Width: 2.25" x Height: 3-1/8" or Length: 36" x Width:2.25" x Height: 3-1/8"


For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Slim Channel Drain - 3 FOOT

Discover the latest channel drain product from NDS - the Slim Channel drainage series. Combining the best features of the Micro and Mini Channel series, the NDS 6' Slim Channel Drain boasts a sleek design with a reduced flying buttress and Micro Channel-inspired internal couplings. Choose from a wide selection of grating options to match your hardscape and enjoy a hassle-free installation with compatibility with Schedule 40 PVC pipe and fittings. The Slim Channel series by NDS interfaces with Schedule 40 PVC pipe and fittings.

Quick Look

  • Use With NDS Slim Channel Accessories
  • Call In Directly for our NDS 9 FT Slim Channel Drain Pricing
  • Snap-in channel grates are removable, making it easy to clean debris from the inside channel for maintenance
  • NDS Slim Channel Couplings (#9248) are required for installation, Sold Separately
  • The Slim Channel Drains connect securely with internal couplings, and the bottom outlet and end caps with knockout outlets can be attached to 1-1/2" Schedule 40 PVC pipes
  • Secure a watertight connection with PVC glue between the outlet and pipe or between channels. Easy installation is made possible with anchor clips that attach the channel to the base.
  • Dimensions: The NDS Slim Channel Drains measure 2-1/4 inches wide, 3 inches in height, and 6 feet in length. Lengths can be easily customized with a saw
  • ADA Compliant
  • Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
  • Material: UV Protected High-Density Polyethylene (HDPE)
  • Call In Directly for our NDS 9 FT Slim Channel Drain Pricing
Shop the entire line of NDS Slim Channel Products

Additional Resources

NDS Slim Channel Drain Technical Specifications
NDS Slim Channel Catalog
NDS Slim Channel Product Overview
NDS Slim Channel FAQ
NDS Channel Grate Outlet Flow Capacities
NDS Product Catalog
Channel Drain FAQS

Installation Instructions

NDS Slim Channel Landscape Traffic Installation
NDS Slim Channel Pavers Installation
NDS Slim Channel Slab Installation
Más Información
Brand NDS
Numero de parte 9206-3
Longitud 72"
Anchura 2-1/4"
Altura 3-1/8"
Peso 1
Color Negro
