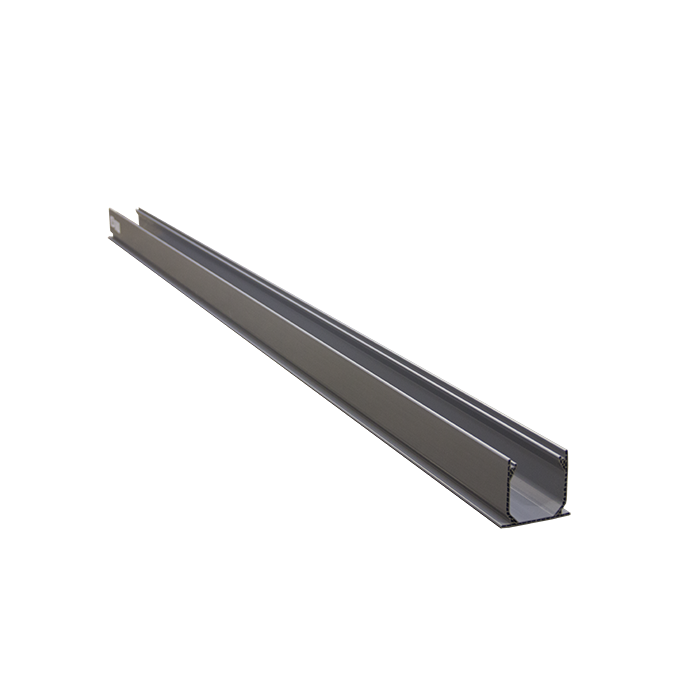

NDS 6' Mini Channel Drain

Product Details: NDS 6' Mini Channel Drain (6 FOOT LENTH SECTION)

NDS Mini Channel Drains are an efficient solution for removing water from hardscapes and directing it away from building structures. This product is ideal for both residential and non-residential projects. It is a cost-effective alternative to the NDS Spee-D Channel and is suitable for light-duty applications such as pools, patios, spas, and tennis courts. The NDS Mini Channel Drain provides a larger surface area compared to the NDS Slim Channel drain and comes with brass and plastic grates in various colors. As part of the NDS Mini Channel Drainage Series, it is a durable and stylish option for managing moderate drainage water. Upgrade your outdoor space with the NDS Mini Channel Drainage system for reliable and effective water management.

Quick Look

• Use With NDS Mini Channel Products
• All accessories are sold separately
• Mini Channel grates material include: Plastic, Brass, Iron
• Provided In 6 Foot Sections
• Dimensions: 6' LENGTH x 3.5" WIDTH
• There are two options to drain the water out of the Mini Channel; the end of the channel or the bottom of the channel
• Sections of Mini Channel are to be connected together using the Mini Channel Couplings (NDS Part #548)
• Channel Drain can be easily cut to any length
• Inverse Fly-Buttress Design / Bottom Flanged
• PVC glue can be used to glue all pieces together
• Channel drain itself will accommodate about the same volume of water as a 3” diameter pipe
• ADA Compliant
• Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #4 x 5/8” screws (4 per grate, screws sold separately
• Load Recommendation: Varies on grate selection
• Material: UV Protected High-Density Polyethylene (HDPE)
