NDS 3" Round Polished Chrome Grate With PVC Collar
- Comprar 10 por 54,45 US$ cada uno y ahorra 7%
Dimensions:Length: 3-1/4" x Width: 3-1/4" x Height: 1-3/8"
For personalized assistance or a customized quote, Call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

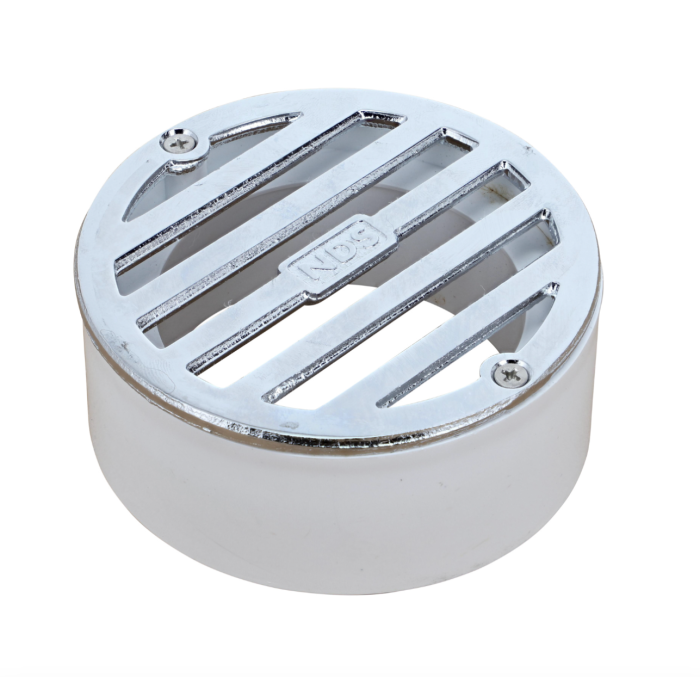

Product Details: NDS 3" Round Polished Chrome Grate With PVC Collar
The NDS 3" Round Polished Chrome Grate With PVC Collar is a durable, maintenance-free grate that provides a pleasant aesthetic to any hardscape. The grate is rated for Class A loads (1-60 PSI) and can accommodate 8.2 gallons of water per minute, making it a perfect choice to divert water away from problem areas. The PVC collar fits 2" Schedule 40 pipe and 3" sewer and drains fittings, allowing it to be easily adapted to any system. This pleasant aesthetic fits many design choices at a desirable price range, making it a no-brainer for your next project!
Quick Look
- Material: Polished Chrome Grate & screws with PVC Collar
- Load Recommendation: Class A (0-61 PSI / 3,800 lbs per foot)
- Recommended for pedestrian traffic
- PVC Collar
- 3/16" Grate Opening
- Open Surface Area: 2.68 square inches
- Will accommodate 8.20 gallons per minute with 1/2" of head
- Heel-proof
- ADA Compliant
- Fits 2" SCH-40 Pipe and 3" Sewer and Drain Fittings
Additional Resources
NDS 3" Round Satin Chrome Grate With PVC Collar Technical SpecificationsHow to Improve A Area Drain
| Brand | NDS |
|---|---|
| Numero de parte | 907PC |
| Longitud | 3-1/4" |
| Anchura | 3-1/4" |
| Altura | 1-3/8" |
| Apertura de rejilla | 3/16" |
| Área de superficie abierta | 2.68 square inches |
| Galones por Minuto | 8.20 GPM |
