NDS 24" Catch Basin Kit (Black Grate)

Product Details: NDS 24" Catch Basin Kit (Black Grate)

The NDS 24" Catch Basin Kit (Black Grate) is a vital part of the NDS drainage system. This product is designed to effectively manage excess surface water from lawns, landscapes, residential driveways, and garages. Made to withstand regular use in both landscaping and hardscaping projects, this kit is durable and built to last. The NDS 24" Catch Basin Kit (Black Grate) helps prevent the clogging of pipelines by collecting debris and other particles, ensuring the proper flow of water. Grates are customizable, with a variety of patterns and colors to choose from, allowing for seamless integration into your surroundings. Whether you're looking to manage water buildup in common areas or divert water away from structures, erosion-prone landscapes, or areas with poor drainage, the NDS 24" Catch Basin Kit (Black Grate) has you covered. Each kit includes ONE 2-Hole 24" NDS Catch Basin (#2400), a Black HDPE Catch Basin Grate (#2411), a Universal Adapter Plug (#1206), a 8" Universal Locking Outlet (#1888), Two Reducer Rings (#1890), and Two NDS 10" and 12" Catch Basin Universal Adapter (#2410), for your convenience. With everything you need in one package, the 24" Catch Basin Kit (Black Grate) is the ultimate solution for managing and controlling surface water in your projects.

Quick Look

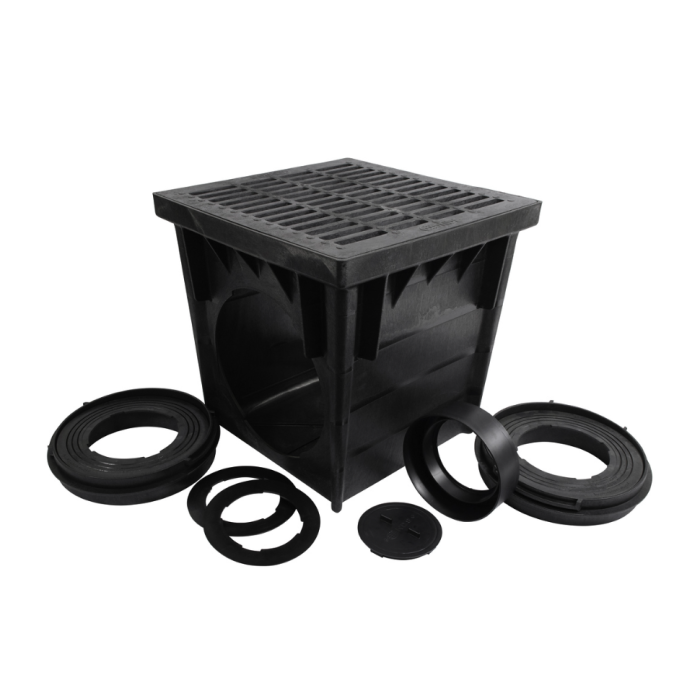

• Includes ONE 2-Hole 24" NDS Catch Basin (#2400), a Black HDPE Catch Basin Grate (#2411), a Universal Adapter Plug (#1206), a 8" Universal Locking Outlet (#1888), Two Reducer Rings (#1890), and Two NDS 10" and 12" Catch Basin Universal Adapter (#2410)
• Dimensions: 24-3/4" LENGTH x 24-3/4" WIDTH x 24" HEIGHT
• Fits: 3” or 4” Sch. 40, sewer, drain, corrugated, and triple wall pipe, 6” and 8” sewer, drain, and corrugated pipe, 10” and 12” sewer, drain, and dual wall corrugated pipe, 12” single wall corrugated pipe will not fit a 10” single wall corrugated pipe.
• ADA Compliant
• Load Recommendation: Varies on grate selection
• Openings on basin lock outlet adapters in place
• The connections between the catch basin and the sump boxes, risers, and universal outlets are soil tight, not water tight. Adding a bead of water proof silicone on each surface being connected will create a water tight connection
• Material: UV Protected High-Density Polyethylene (HDPE)
• Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
• Suitable for light vehicular traffic when properly installed
• Used for capturing and redirecting excess water to safe locations
• Ideal for residential, commercial, and industrial environments to manage large volumes of water
• Catch basin universal outlet must be used to connect pipes to the catch basin; Connect to 8 in. Drain Pipes using outlet adapters (#1888, #1889); 6 in. Drain Pipes using outlet adapter (#1266); 3 in. & 4 in. Drain Pipes using outlet adapters (#1242, #1243, #1245); seal opening with outlet plug (#1206); outlet adapters & plug
• Keyed openings on basin lock outlet adapters in place

Additional Resources

Installation Instructions
