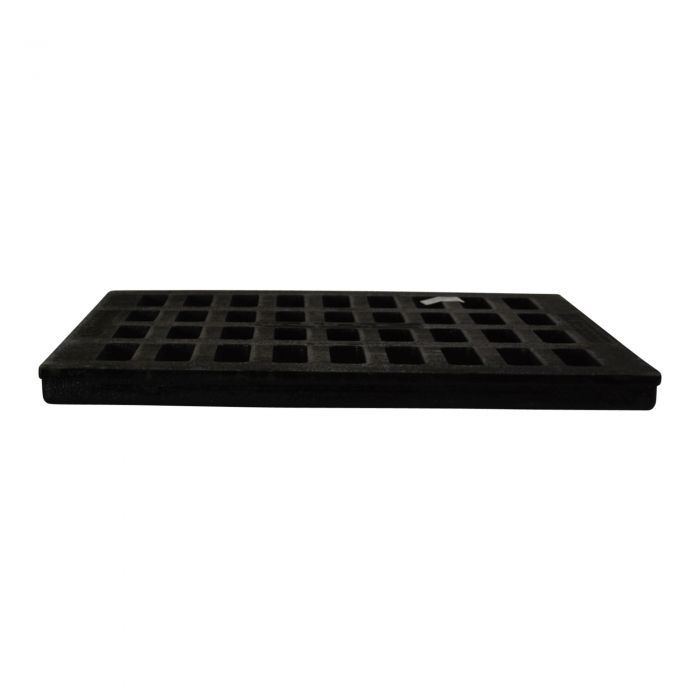

NDS 18" Catch Basin Grate, Cast Iron
286,65 US$
Disponible
SKU
1813
Dimensions: L:16-7/8" x W:16-7/8" x 2-1/4" HEIGHT (1" Thickness)
Call in directly to 803-324-3225 for a personalized quote.
Product Details: NDS 18" Catch Basin Grate, Cast Iron
18" Catch Basin Grates a proven alternative to traditional concrete drains with UV inhibitors are used to prevent fading and cracking from the sun, are chemical-resistant and are rustproof! An 18" Catch Basin Grate is maintenance-free, and also lightweight, and easy to install. 18" Catch Basin Grate is used to helping to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic.
Quick Look
- Cast Iron
- H-20 Rated
- Grate Opening: 1" x 3"
- Open Surface Area: 100.63 Sq. Inches
- Grate Opening: 7/16â€Â
- ADA Compliant
- 478.92 GPM
- Class C Load Rated (175-325 PSI)
- Designed For 18" Catch Basins
- Product Class: 10ND
Additional Resources
How To Fix A Downspout ProblemNDS 18" Catch Basin Grate, Cast Iron Technical Specifications Sheet
How To Use A Catch Basin
Catch Basin Flow Capacities
Catch Basin Invert Table
Will NDS Iron Metal Grates Rust?
Installation Instructions
NDS 18" Catch Basin Installation for Landscape ApplicationsNDS 18" Catch Basin Installation for Pedestrian and Light Vehicular Traffic Applications
NDS 18" Catch Basin Installation for Vehicular Traffic Applications (Load Class C)
NDS 18" Catch Basin Plumbing Connection
NDS 18" Catch Basin Installation for Vehicular Traffic Applications (Load Class D)
NDS 18" Catch Basin Installation for Landscape Application with Riser
| Brand | NDS |
|---|---|
| Numero de parte | 1813 |
| Color | Negro |
| Longitud | 16.88" |
| Anchura | 16.88" |
| Altura | 1" |
| Apertura de rejilla | 1" |
| Área de superficie abierta | 110.70 Square Inches |
| Galones por Minuto | 338.65 GPM |
