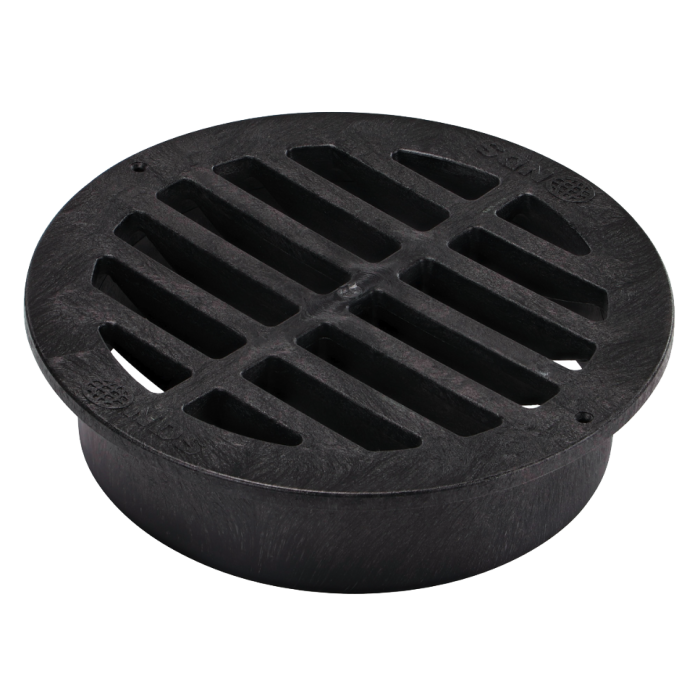

NDS 15" Round Grate

Product Details: NDS 15" Round Grate

NDS round grates provide long-lasting protection against fading and cracking caused by the harsh sun. Unlike other grates, NDS grates are chemical-resistant and rustproof, ensuring they remain in excellent condition even in the toughest outdoor environments. NDS 15" Round Grates are maintenance-free and lightweight, making them easy to install and ideal for outdoor spaces that receive light foot traffic. NDS 15" Round Grated is optimized to collect and direct water away from driveways, patios, and other outdoor areas. And with compatibility with a wide range of drainage systems, including 15" sewer and Drain fittings, 15" Corrugated pipe. NDS 15" Round Grates is convenient a choice for a range of drainage project

Quick Look

• Color: Black (NDS #1511) and Green (NDS #1512)
• Dimensions: 17" LENGTH x 17" WIDTH x 24-1/2" HEIGHT
• ADA Compliant
• Load Recommendation: Class B (61-175 PSI )
• Material: UV Protected High-Density Polyethylene (HDPE)
• Use with 15" sewer and Drain fittings, 15" Corrugated pipe
• Grate Openings: 85.60" sq. open space
• PVC glue can be used to bond all components together
• Grates can be cut
• Will accommodate 261.86 gallons per minute with 1/2” of head
• Suitable for pedestrian traffic when properly installed
• Used for capturing and redirecting excess water to safe locations
