Frontier Deck Drain - Tan (5 FT)

26,00 US$
No está disponible
SKU
SDDT

Includes One 5 FT Frontier Deck Drain, One 5 FT Frontier Deck Drain Grate (Tan), and One Coupling


Dimensions: 60" x 1.7" x 3.23"

Product Details: Stegmeier Frontier Deck Drain - Tan (5 FT)

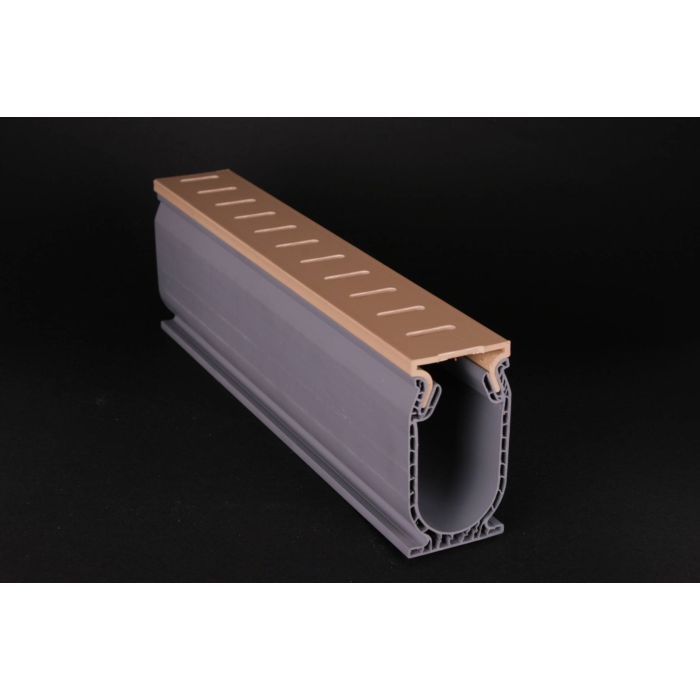

Stegmeier Frontier Deck Drain - Tan is a removable top drain that features a double wall base and a snap-in top. When installing this drain the tops are staggered past the joints making the joints very rigid. Because the Frontier Deck Drain tops are removable this drain is easy to clean and the tops can be replaced if ever damaged. It is recommended that you drill and pin (3/8″ rebar) the base at 3-foot intervals to stabilize against any movement in the concrete slab. Stegmeier offers a fiberglass Drain Dowel for this purpose. Stegmeier Frontier Deck Drain - Tan is excellent for light-duty applications including pools, patios, spas, and tennis courts. This item is part of the Stegmeier Frontier Deck Drainage System.

Quick Look

  • UV Inhibitors
  • High Density Polyethylene (HDPE)
  • Includes One Frontier Deck Drain, One Frontier Deck Grate (Tan), and One Coupling
  • Down Adapter, Side Adapter and End Adapter all adapt to 1 1/2″ Schedule 40 Pipe
  • ADA Compliant
  • 5 Foot Sections
  • Frontier Deck Drain couplers (STEG-DCUP) must be used to connect Frontier Deck Drain and fittings
  • Stegmeier, LLC requires that a 3/8" rebar be placed every 36", midway in the drain to prevent damage due to concrete deck movement
  • Removable top drain features a double wall base and a snap in top
  • Use with Stegmeier Frontier Deck Drains
Shop the entire line of Stegmeier Products offered at Drainage Connect

Additional Resources

How To Install Stegmeier Frontier Deck Drain
Stegmeier Catalog Brochure
Stegmeier Frontier Deck Drain and Fittings Installation Video
Stegmeier Frontier Deck Drain Technical Specifications
Más Información
Brand Stegmeier
Numero de parte SDDT
Longitud 60" - 61"
Anchura 1.7"
Altura 3.23"
Peso 3
Color Arena
