Filcoten TEC V 100 Trench Drains

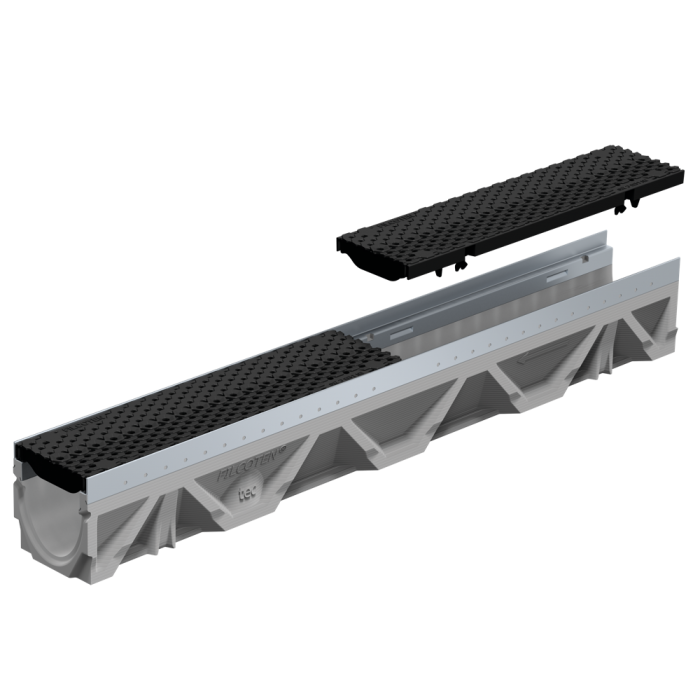

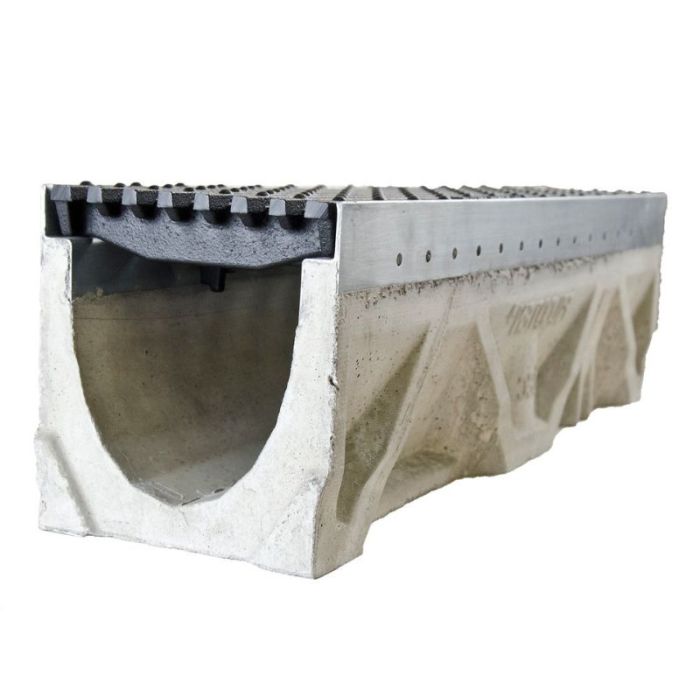

Product Details: Filcoten Tec V 100 Channel

Filcoten trench drain systems capture and convey stormwater in the most difficult conditions, whether residential, commercial, or industrial. The channel sections are made from industry-leading high-performance, fiber-reinforced concrete which is stronger, lighter, and more durable than the competition. Filcoten's innovative material is 100% recyclable, contains 0% harmful substances, is non-flammable, and cannot be damaged due to temperature changes or UV exposure. The ability to withstand repeated stresses and heavy loads make Filcoten an ideal choice for a wide variety of load-intensive applications at an affordable price.

Versatility with NDS Filcoten Trench Drains

• Commercial Applications: High-performance fiber-reinforced concrete withstands heavy foot traffic and daily wear and tear
• Industrial Projects: Durable design and impact resistance make NDS Filcoten ideal for all industrial projects
• Garages/Parking Lots: Easy to install and maintain, preventing damage to vehicles and infrastructure
• Residential Developments: Ensure homes and residential properties stay safe and dry

Drainage Connect offers a full line of Filcoten products to complete any project. The Filcoten Tec V 100 Channel line comes in both pre-sloped and neutral sections that can be used with any Filcoten 100 series grate or accessory. For projects that require more water to be managed Filcoten Pro V 200 and Pro V 300 suit best

Quick Look

• Rail Material: Galvanized Steel
• 20 Pre-Sloped Channel Sections (0.5% #1-20) & 4 Neutral Channel Sections
• 0.5% Slope each sloped channel section
• Outlets can be configured as Bottom, End Outlet or use with a Catch Basin
• ADA Compliant
• Used for capturing and redirecting excess water to safe locations
• Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
• Dimensions: 39.37" LENGTH x 5.1" WIDTH x 5.31" to 7.28" INNER DEPTH HEIGHT
• Load Recommendation: Varies on grate selection (Up to Class E)
• Material: High-Performance Fiber Reinforced Concrete
• Manufactured to EN1422 Standards
• The longest sloped channel run with a catch basin in the middle can reach a distance of 135 linear feet
• The maximum run length with all sloped channel drains, one neutral-slope channel drain, and a central catch basin is 162 linear feet
• 100% recyclable/ 0% harmful substances. Sustainable solution without VOCs or heavy-metal residue that can leach into the ground. Qualifies for LEED credits
• Connection Features: Bottom outlets are eligible to be included on every channel drain section
• The inclusion of a sealant groove in this drainage system allows for a watertight connection between channels, enhancing the system's overall effectiveness in preventing water leakage
• Connection to Grating: NDS 4-point locking system with Vandal Lock is available
