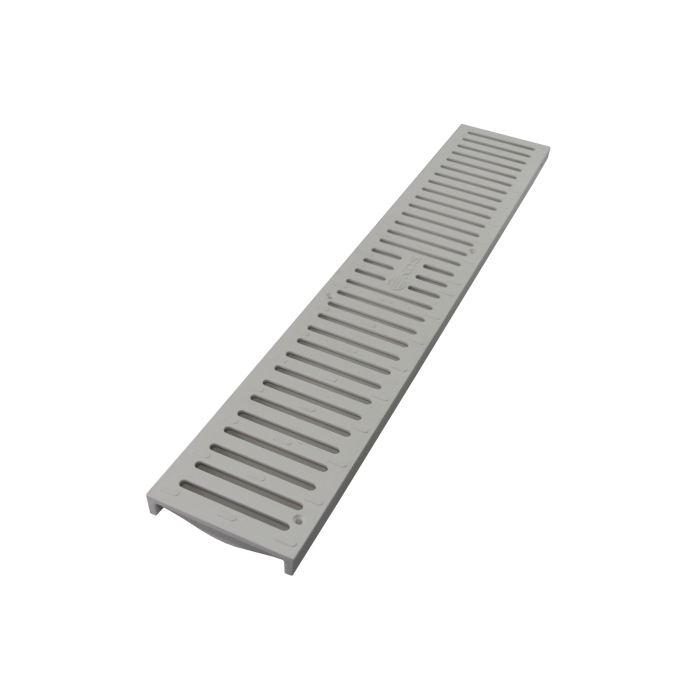

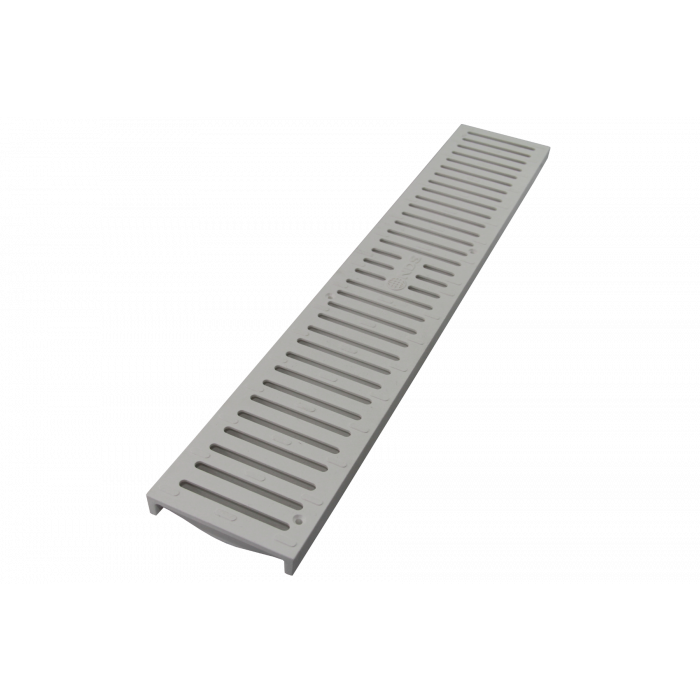

NDS Spee-D Channel Grate
Dimensions: Length: 24" x Width: 4-1/8" x Height: 3/4"
Color: #240 (White), #241 (Gray), #242 (Green), #243 ( Black), #244 (Sand) , and #251 (Brick Red)
For personalized assistance or a customized quote, call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS Spee-D Channel Grate
The NDS Spee-D Channel Grate comes in six colors: White (#240), Gray (#241), Green (#242), Black (#243), Sand (#244), and Brick Red (#251). With its versatility, it can handle a range of applications including patios and light vehicular traffic areas. Made from chemical-resistant and rustproof materials, the maintenance-free and lightweight grates are a breeze to install, making the Spee-D Channel Drain an efficient and effective solution for your drainage needs. Call in directly for a personalized quote today! Part of NDS Spee-D Series
Quick Look
- Install with Four FH #8 x 1" screws, per grate (Sold Separately)
- ADA Compliant
- Colors: White (#240), Gray (#241), Green (#242), Black (#243), Sand (#244), and Brick Red (#251)
- Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
- Grate Opening: 3/8” x 3-1/4”
- Dimensions: 24" LENGTH x 4-1/8" WIDTH x 3/4" Height
- Open Surface Area: 16.92 Sq. Inch per Ft.
- Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
- Equipped with UV Inhibitors
- Material: UV Protected High-Density Polyethylene (HDPE)
NDS Spee-D Channel FAQS and Resources
Additional Resources
NDS Spee-D Channel Grate Technical SpecificationsNDS Spee-D Channel Technical Specifications
NDS Channel Grate Outlet Flow Capacities
Installation Instructions
NDS Spee-D Channel Drain Light Vehicular Traffic Installation - PaversNDS Spee-D Channel Drain Bottom Outlet Installation
NDS Spee-D Channel Drain End Outlet Installation
NDS Spee-D Channel Drain Typical Landscape Traffic Installation
NDS Spee-D Channel Drain Typical Light Vehicular Traffic Installation
NDS Spee-D Channel Drain Typical Pedestrian Traffic Installation
NDS Channel Drain Installation Guide
Brand | NDS |
---|---|
Part Number | NDS 240 |
Length | 24" |
Width | 4 1/8" |
Grate Opening | 1/4" x 3-1/8" |
Open Surface Area | 16.92 Square Inches per foot |
Gallons Per Minute | 146.36 GPM |
