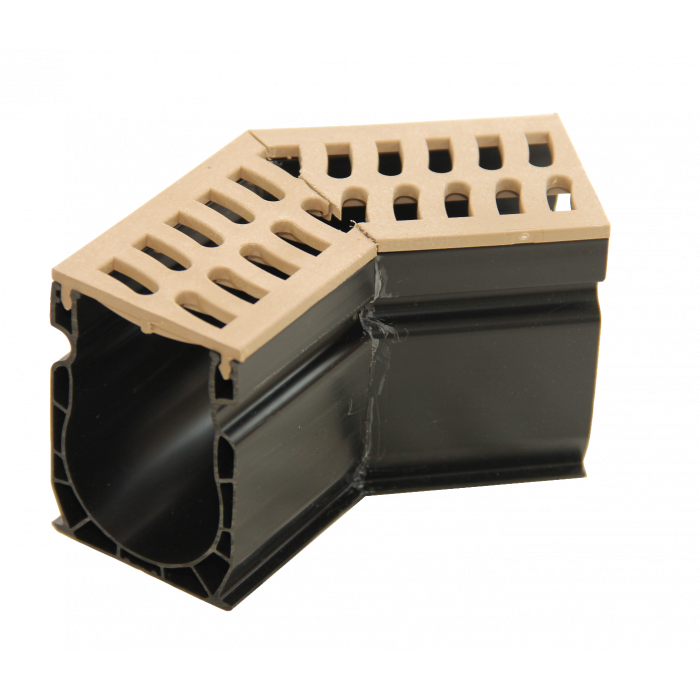

NDS Slim Channel Fabricated 45 Degree Angle - Sand

$23.82
In stock
SKU
9302

Dimensions: Length: 3.14" x Width: 3.14"


Color: White (#9301), Gray (#9303), Sand (#9302)

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Slim Channel Fabricated 45 Degree Angle

Discover the latest channel drain product from NDS -- the Slim Channel drainage series. NDS Slim Channel is designed with a unique blend of key features from the NDS Micro and Mini Channel drainage series. Installation is made easy with the compatibility with Schedule 40 PVC pipe and fittings. The NDS Slim Channel's slim profile makes it an unobtrusive addition to any outdoor space, creating efficient drainage without detracting from your design aesthetic. The NDS Micro Channel inspired internal couplings to ensure a secure and tight fit, providing a seamless appearance. This product is constructed with durable lightweight and easy-to-install PVC material. The NDS Slim Channel Fabricated 45 Degree Angles are designed to connect NDS Slim Channel drains at a 45-degree angle. Each Slim Channel Fabricated 45-Degree Angle is chemically resistant and rustproof. Slim Channel Fabricated 45-Degree angles are a proven better alternative to traditional concrete drains that can be used for commercial and residential applications. The Slim Channel series by NDS interfaces with Schedule 40 PVC pipe and fittings.

Quick Look

  • Use With NDS Slim Channel products and accessories
  • The Slim Channel Drains connect securely with internal couplings (#9248), and the bottom outlet (NDS #9250) and end caps with knockout outlets (NDS #9247) can be attached to 1-1/2" Schedule 40 PVC pipes
  • Secure a watertight connection with PVC glue between the outlet and pipe or between channels. Easy installation is made possible with anchor clips that attach the channel to the base.
  • Dimensions: The NDS Slim Channel Drains measure 2-1/4 inches wide, 3 inches in height, and 6 feet in length. Lengths can be easily customized with a saw
  • ADA Compliant
  • Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
  • This product is designed to connect NDS Slim Channel drains at a 45-degree angle
  • Material: UV Protected High-Density Polyethylene (HDPE)

Additional Information

NDS Slim Channel Catalog
NDS Catalog
NDS Slim Channel Product Overview
NDS Slim Channel Fabricated 45 Degree Angle Technical Specifications

Installation Instructions

NDS Slim Channel Landscape Traffic Installation
NDS Slim Channel Pavers Installation
NDS Slim Channel Slab Installation
More Information
Brand NDS
Part Number 9302
Color Sand
