Product Details: NDS 5" Pro Series Channel Drain

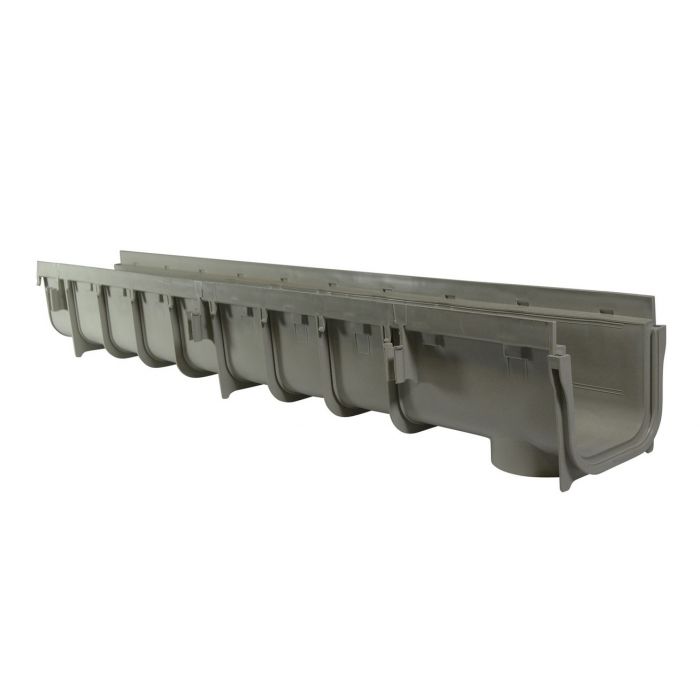

NDS has designed an upgraded and improved NDS 5" Pro Series Deep Profile Channel Drain. The new NDS 5" pro series channel drain is the most durable, feature-rich, and simple to install modular drainage system in its class. Pro series channel drains are molded with polypropylene, with extended side ribs for increased channel strength. Channels snap end-to-end quickly and efficiently with robust male-to-female locking clips for long channel runs. There are cut guides to allow the channel to be shortened by 4-inch increments for smaller interlocking sections. Available end caps and end outlets combined with new integrated second-bottom outlet and side-outlet knockouts provide 8 outlet options per channel section for increased design and installation flexibility. The new side outlets now allow 90-degree, tee, and cross configurations to be made in the field without specialty accessories. New strengthened #4 rebar clips along the channel sides allow for quicker and easier installation and increased system strength. Pro Series Channel Drains are compatible with up to 10 different grate options including heel-proof perforated and ADA-compliant slotted styles. The grate materials high-density polyethylene with 6 color options, glass-filled nylon, and also ductile iron for a broad range of loading and usage applications including driveways, courtyards, plazas, pool decks, and parking lots, sports facilities, and more. Pro Series Channel Drain is also compatible with the patented NDS Pro Series Qwik-Turn Radius Coupling to grant for curving layouts with up to 6 degrees of deflection between couplings and channels. NDS is the only drainage manufacturer to offer this incredible ability! and UV inhibitors to prevent fading and cracking.

Quick Look

Compliant with the Americans with Disabilities Act (ADA) standards
Material: UV Protected High-Density Polyethylene (HDPE)
Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per grate, screws sold separately)
Interlocking channel design for a secure, tight fit
Channel can be as long as you need, or reduce to lengths as short as 4" for smaller, interlocking sections
Load Recommendation: Varies on grate selection
UV Inhibitors To Prevent Fading Or Cracking
Included end cap/outlet combined with integrated bottom outlet and side-outlet knockouts provide 8 outlet options per channel section
Sections of 5” Pro Series Channel can be connected using the interlocking end joints
Bottom outlet connects to 3 in. & 4 in. Sewer and Drain Fittings; side outlets to 3 in. Sewer and Drain Pipe; end outlet to 3 in. Sewer and Drain Pipe & 4 in. Sewer and Drain Fittings
Modular design connects together for longer runs, can be cut to size as short as 4 in. long for smaller sections
Thick channel walls and extended side ribs provide increased strength and durability
NDS 5" Pro Series Deep Channel will hold about the same volume of water as a 5” diameter pipe.
Rebar tie clips for easier installation: Fits #4 Rebar
Use with 5" Pro Series Grates ( 2 grates per channel), Cap (#812) and Outlet ( #811 & #813)
