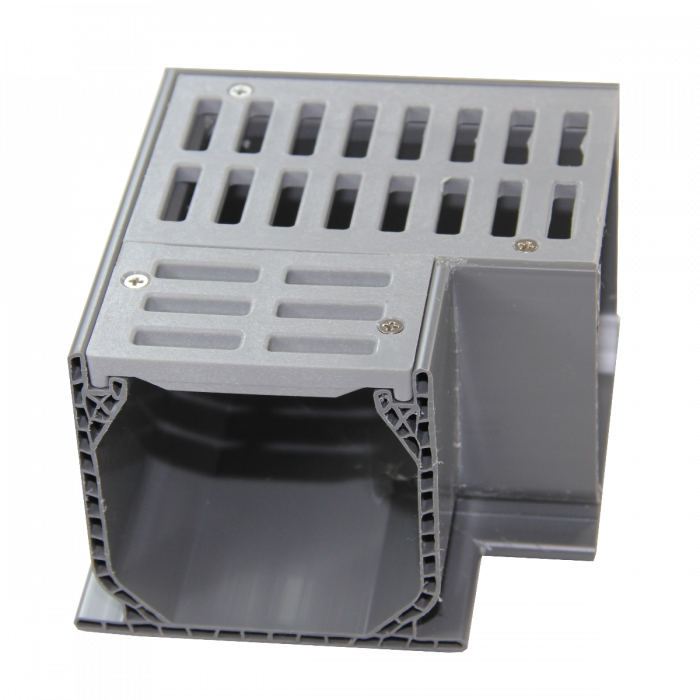

NDS Mini Channel Fabricated 90-Degree Elbow With Grate

As low as $29.55
In stock
SKU
NDS 5380

Dimensions:

Color:Gray (#5380) & Sand (#5383)


Call in directly to 803-324-3225 for a personalized quote.

Product Details: NDS Mini Channel Fabricated 90 degree Elbow With Grate

This Fabricated Mini Channel 90-degree Elbow With Grate is part of the NDS Mini Channel Series. NDS channel drains are a proven alternative to traditional concrete drains. Mini Channel Fabricated 90-degree Elbow With Grate is used to connect Mini Channel at a 90-degree angle. Features UV inhibitors are used to prevent fading and cracking from the sun and are chemical-resistant, rustproof and maintenance-free, lightweight, and easy to install.

Quick Look

  • UV Inhibitors
  • High Density Polyethylene (HDPE)
  • ADA Compliant
  • Product Class: 25PF
  • NDS Mini Channel is made from PVC.PVC glue can be used to glue all pieces together
  • Sections of Mini Channel can be connected together using the Mini Channel Coupling (NDS part #548)
  • Grate Openings : 9.90" per foot
  • Product Class: 10ND
  • Use With NDS Mini Channel Drain (#500)
  • Class B Load Rated (61-175 PSI)
Shop the entire line of NDS Mini Channel Products
NDS Mini Channel FAQS

Additional Resources

How To Install Spee-D or Mini Channel Drain
NDS Mini Channel Fabricated 90 degree Elbow With Grate Technical Specifications
NDS Mini Channel Accessories
Installing A NDS Mini Channel Drain

Installation Instructions

NDS Mini Channel Drain Typical Landscape Traffic Installation
NDS Mini Channel Drain Typical Light Vehicular Traffic Installation
NDS Mini Channel Drain Typical Light Vehicular Traffic Installation Pavers
NDS Mini Channel Drain Typical Pedestrian Traffic Installation
NDS Mini Channel Drain Pool Deck Installation Detail
NDS Mini Channel Drain End Outlet Installation Detail
NDS Mini Channel Drain Bottom Outlet Installation Detail
NDS Channel Drain Installation Guide
More Information
Brand NDS
Part Number NDS 5380
Width 4-1/2"
Length 4-1/4"
