NDS FILCOTEN 200 Anti Vandalism Locking Device

Product Details: NDS FILCOTEN 200 Anti Vandalism Locking Device

FILCOTEN by NDS is a trench drain system that captures and conveys stormwater on commercial and residential sites. FILCOTEN channel sections are made from industry-leading high-performance fiber-reinforced concrete which is stronger, lighter, and more durable than the competition. FILCOTEN's innovative material is 100% recyclable, contains 0% harmful substances, is non-flammable, and cannot be damaged due to temperature changes or UV exposure. The high density of fiber in this concrete allows FILCOTEN to withstand impacts and support heavy loads, making it quintessential for any application!

Versatility with NDS FILCOTEN Trench Drains

• Commercial Applications: High-performance fiber-reinforced concrete withstands heavy foot traffic and daily wear and tear
• Industrial Projects: Durable design and impact resistance make NDS FILCOTEN ideal for all industrial projects
• Garages/Parking Lots: Easy to install and maintain, preventing damage to vehicles and infrastructure
• Residential Developments: Ensure homes and residential properties stay safe and dry

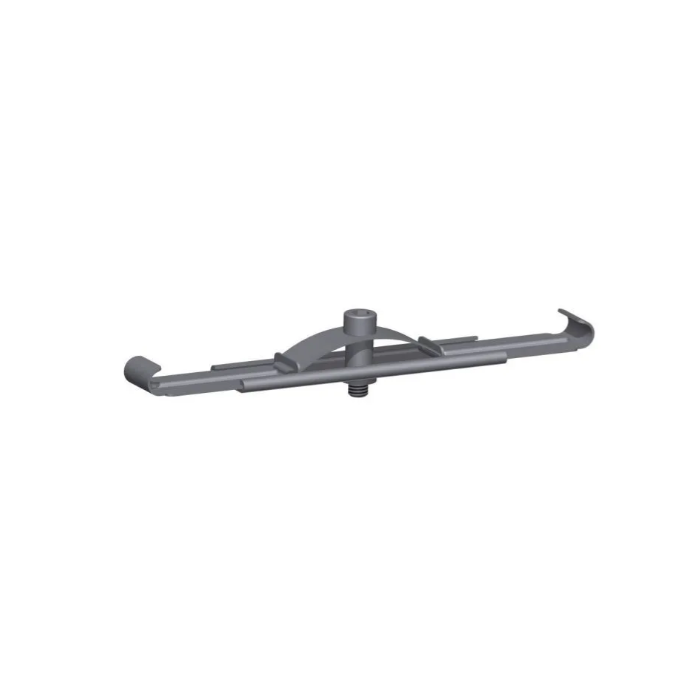

The Anti-Vandalism Locking Device secures to any grate to ensure that grates cannot be removed. The Anti-Vandal lock clips into the bottom of the grate and it tightened to fit into a groove in the channel rail once installed. The FILCOTEN 200 Anti Vandalism Locking Device is compatible with any FILCOTEN 200 channel section or grate.

Quick Look

• Use with NDS FilcoTen Tec V 200 Trench Drains
• Material: Galvanized Steel
• ADA Compliant
• Used for capturing and redirecting excess water to safe locations
• Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
• Load Recommendation: Varies on grate selection (Up to Class E)
• The longest sloped channel run with a catch basin in the middle can reach a distance of 135 linear feet
• The maximum run length with all sloped channel drains, one neutral-slope channel drain, and a central catch basin is 162 linear feet
• 100% recyclable/ 0% harmful substances. Sustainable solution without VOCs or heavy-metal residue that can leach into the ground. Qualifies for LEED credits
• Connection Features: Bottom outlets are eligible to be included on every channel drain section
• The inclusion of a sealant groove in this drainage system allows for a watertight connection between channels, enhancing the system's overall effectiveness in preventing water leakage
• Connection to Grating: NDS 4-point locking system with Vandal Lock is available
