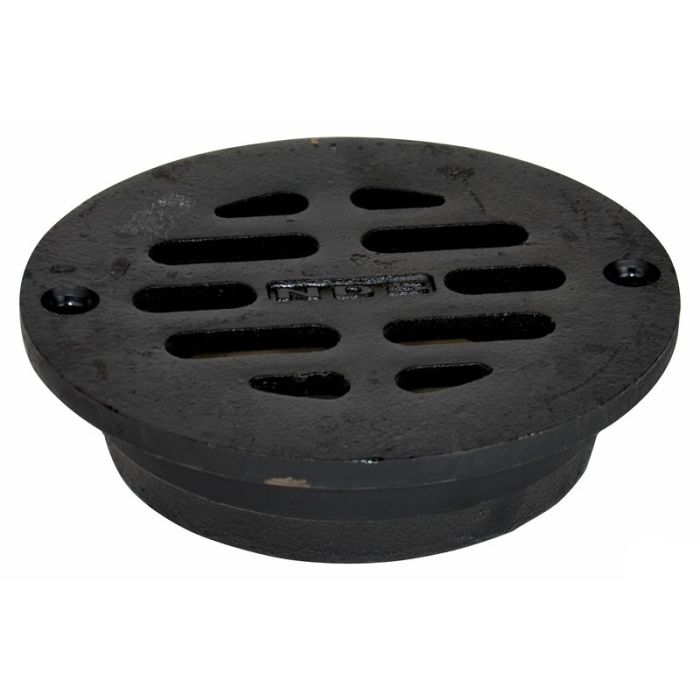

NDS Duracast In-Line 8" Round Grate

Product Details: NDS Duracast In-Line 8" Round Grate

The NDS Duracast In-Line 8" Round Grate is a heavy-duty ductile iron round grate that is specifically designed for stormwater drainage systems. With its impressive load-bearing capacity, this grate is capable of handling loads ranging from 326 to 575 psi, while also meeting H-20 load rating standards. The Duracast In-Line 8" Round Grate are an excellent choice for areas with high traffic or heavy loads. Duracast In-Line 8" Round Grate is designed to fit 8" corrugated sewer and drain pipe. Ductile iron is equipped with a superior strength-to-weight ratio and improved resistance to corrosion. Don't hesitate to call in directly to speak to an expert if you wish for personal assistance.

Quick Look

• ADA Compliant
• UV Inhibitors
• 1" Grate Opening
• Material: Ductile Iron
• Fits: 8” Corrugated and Sewer and Drain pipe
• Load Recommendation: Class D (326-575 PSI / 89,920 lbs per foot)
• Opening: 13.98 inches sq. open space
• H-20 Rated
• Will accommodate 42.77 gallons per minute with 1/2” of head

Additional Resources

Installation Instructions
