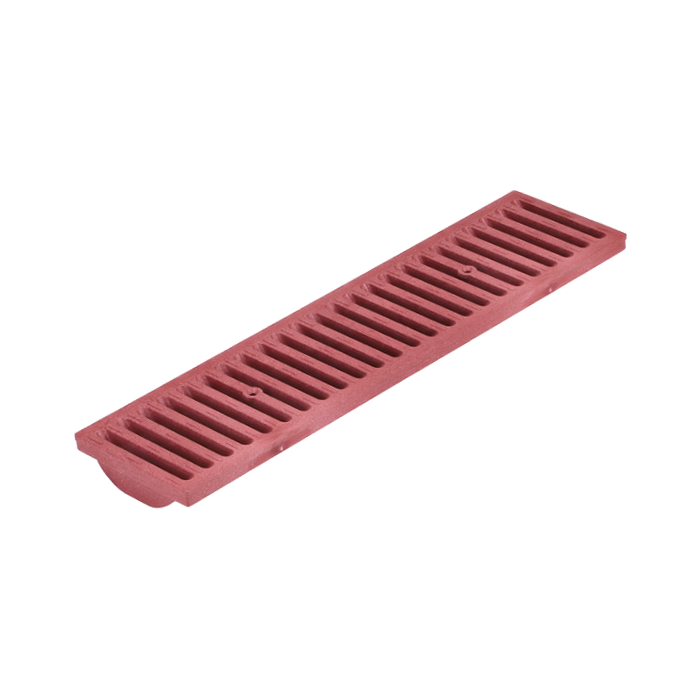

NDS Dura-Slope Channel Grate - Brick Red

Product Details: NDS Dura-Slope Channel Grate - Brick Red

The NDS Dura Slope Trench Drain drainage system is a highly innovative and efficient solution for residential and non-residential drainage applications. With its construction using high-density polyethylene (HDPE), this drainage system offers durability and strength compared to traditional concrete channels. The lightweight and modular design of the system makes installation a breeze, saving time while reducing costs associated with freight and handling. The built-in slope of 0.7% optimizes flow rates, ensuring effective drainage for a wide range of drainage applications. The availability of neutral-sloped sections provides even greater flexibility. The NDS "ProFit" locking system is a major highlight of the NDS Dura Slope Trench Drain drainage system. This innovative locking mechanism securely locks the grate to the frame, providing essential support during installation. The DuraLoc integral joint lock is another key feature that prevents joint movement, ensuring a secure and stable trench drain system. The interlocking tongue and groove joints and bottom outlet in each channel section further enhance the system's stability and effectiveness. Not only is the NDS Dura Slope Trench Drain efficient and effective, but it also offers a sleek and attractive design. The smooth surface of the trench drain and the variety of grate options available make it an attractive option for residential and non-residential. It is also extremely easy to maintain, as the grates can be easily removed for cleaning and replacement if necessary. Whether you are a contractor, engineer, or building owner, the NDS Dura Slope Trench Drain drainage system is an investment worth making for long-lasting and effective drainage solutions.

Quick Look

• ADA Compliant
• Colors: White (660), Gray (661), Green (662), Black (663), Sand (664), Brick Red (665)
• Used for capturing and redirecting excess water to safe locations
• Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
• Dimensions: 24" LENGTH x 6" WIDTH x 3/4" HEIGHT
• Fits: Use with NDS Dura Slope Channel Drains and Dura Slope Catch Basin (NDS #DS-340)
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
• Grate Opening: 25.40 in sq. per foot
• Suitable for light vehicular traffic when properly installed
• Material: UV Protected High-Density Polyethylene (HDPE)
• Dura Slope Channel and grates have been tested to the AASHTO M-306 and EN 1433 (DIN 1958) test methods by an independent AASHTO accredited lab
• Will accommodate 77.70 gallons per minute per foot with 1/2” of head
