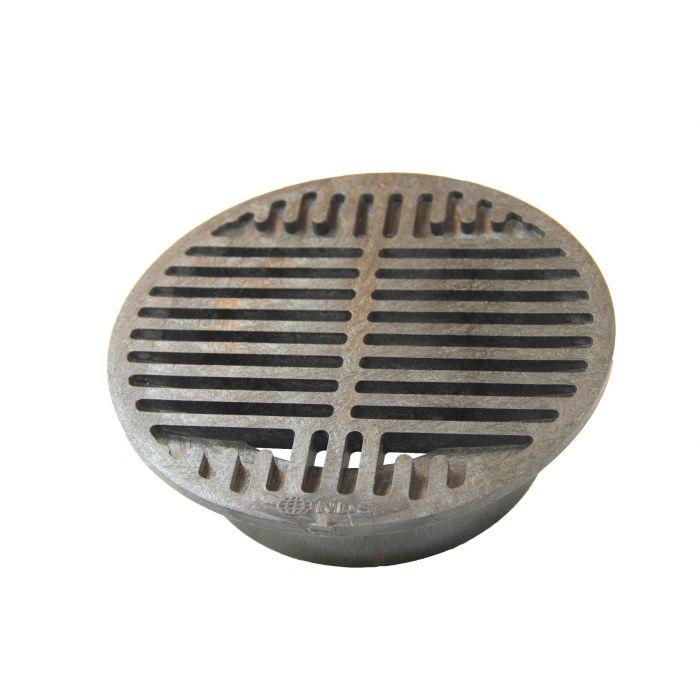

NDS 8" Round Grate

Product Details: NDS 8" Round Grate

NDS round grates provide long-lasting protection against fading and cracking caused by the harsh sun. Unlike other grates, NDS grates are chemical-resistant and rustproof, ensuring they remain in excellent condition even in the toughest outdoor environments. NDS 8" Round Grates are maintenance-free and lightweight, making them easy to install and ideal for outdoor spaces that receive light foot traffic. NDS 8" Round Grated is optimized to collect and direct water away from driveways, patios, and other outdoor areas. And with compatibility with a wide range of drainage systems, including Spee-D® Basin, 6” Sewer and Drain Fittings, 6” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, and Class 100 Pipe, NDS 10" Round Grates is convenient a choice for any drainage project

Quick Look

• Color: Gray (NDS #30), Green (NDS #20), Black (NDS #10)
• Dimensions: 7-3/4" LENGTH x 7-3/4" WIDTH x 2-1/2" HEIGHT
• ADA Compliant
• Load Recommendation: Class A (01-61 PSI / 3,372 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)
• Use with NDS Spee-D® Basins, 6” Sewer and Drain Fittings, 6” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe
• Grate Openings: 11.50" sq. open space
• PVC glue can be used to bond all components together
• Grates can be cut
• Will accommodate 35.18 gallons per minute with 1/2” of head
• Suitable for pedestrian traffic when properly installed
• Used for capturing and redirecting excess water to safe locations

Additional Resources

Installation Instructions
