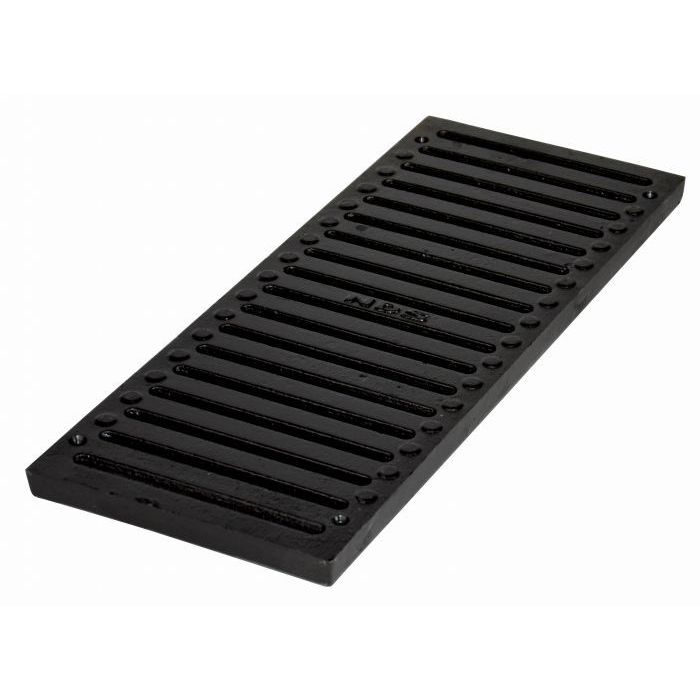

NDS 8" Pro Series Channel Grate, Ductile Iron

Be the first to review this product

$144.40

In stock

SKU

888

Buy 5 for $137.24 each and save 5%
Buy 10 for $134.35 each and save 7%

Dimensions:Length: 19-11/16" x Width: 7-13/16" x Height: 3/4"

For personalized assistance or a customized quote, Call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Details

Product Details: NDS 8" Pro Series Channel Grate, Ductile Iron

The NDS 8" Pro Series Channel Grate, Ductile Iron is the ideal solution for all your drainage needs. The NDS 8" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 8" Pro Series Channel Grate, Ductile Iron is the perfect solution for all your drainage needs.

Quick Look

Use With NDS 8" Pro Series Products
Material: Ductile Iron
Dimensions: 19-11/16" LENGTH x 7-13/16" WIDTH x 3/4" HEIGHT
Channel grates can be easily cut to any length
ADA Compliant
Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per channel grate, screws sold separately)
Open Surface Area: 23.30 Sq. Inches Per Foot
Grate Opening: 9/16” x 6-1/8”
Load Recommendation: Class C (176-325 PSI / 56,200 lbs per foot)
H-20 Rated

Shop the entire line of NDS 8" Pro Series Drains Products NDS 8" Pro Series FAQS

Additional Resources

How To Install A Pro Series Channel Drain
NDS 8" Pro Series Channel Grate, Ductile Technical Specifications
NDS Channel Grate Outlet Flow Capacities

Installation Instructions

NDS 8" Pro Series Installation , 90 Intersection Detail
NDS 8" Pro Series Installation, Pedestrian Traffic Installation Rebar Tie Down 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Landscape Traffic 4" Concrete Abutment
NDS 8" Pro Series Channel Drain Installation Detail Load Class A & B 4" Encasement Brick Rebar Suspension
NDS 8" Pro Series Channel Drain Tee Connection Installation
NDS 8" Pro Series Channel Drain Intersection Connection End Outlet
NDS 8" Pro Series Channel Drain Installation Detail Load Class C 6" Encasement CMU Rebar Suspension
NDS 8" Pro Series Channel Drain Plumbing Connection, 3" End Outlet Detail
NDS 8" Pro Series Channel Drain Plumbing Connection, 4" End Outlet Detail
NDS Channel Drain Installation Guide

More Information

More Information
Brand	NDS
Part Number	888
Color	Black
Length	19.25"
Width	7.80"
Grate Opening	9/16"x6-1/8"
Open Surface Area	23.80 Square inches per foot
Gallons Per Minute	71.28 GPM
