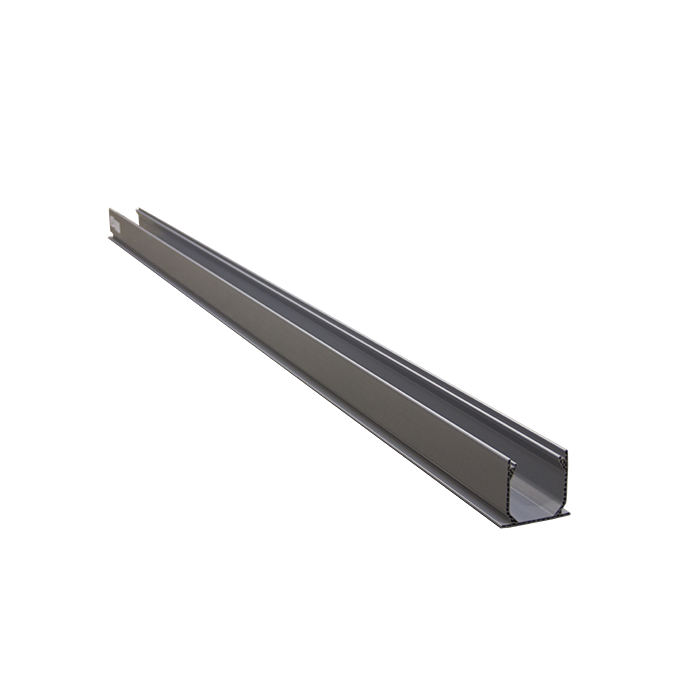

Product Details: NDS 6' Mini Channel Drain (6 FOOT LENTH SECTION)

NDS Mini Channel Drains are an efficient solution for removing water from hardscapes and directing it away from building structures. This product is ideal for both residential and non-residential projects. It is a cost-effective alternative to the NDS Spee-D Channel and is suitable for light-duty applications such as pools, patios, spas, and tennis courts. The NDS Mini Channel Drain provides a larger surface area compared to the NDS Slim Channel drain and comes with brass and plastic grates in various colors. As part of the NDS Mini Channel Drainage Series, it is a durable and stylish option for managing moderate drainage water. Upgrade your outdoor space with the NDS Mini Channel Drainage system for reliable and effective water management.

Quick Look

Use With NDS Mini Channel Products
All accessories are sold separately
Mini Channel grates material include: Plastic, Brass, Iron
Provided In 6 Foot Sections
Dimensions: 6' LENGTH x 3.5" WIDTH
There are two options to drain the water out of the Mini Channel; the end of the channel or the bottom of the channel
Sections of Mini Channel are to be connected together using the Mini Channel Couplings (NDS Part #548)
Channel Drain can be easily cut to any length
Inverse Fly-Buttress Design / Bottom Flanged
PVC glue can be used to glue all pieces together
Channel drain itself will accommodate about the same volume of water as a 3” diameter pipe
ADA Compliant
Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #4 x 5/8” screws (4 per grate, screws sold separately
Load Recommendation: Varies on grate selection
Material: UV Protected High-Density Polyethylene (HDPE)
