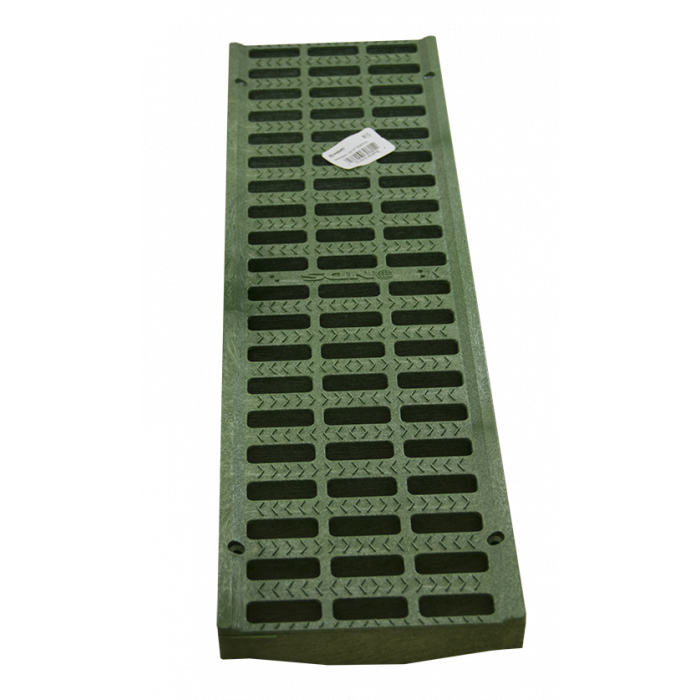

NDS 5" Pro Series Channel Grate - Green

Product Details: NDS 5" Pro Series Channel Grate

The NDS 5" Pro Series Channel Grate is the ideal solution for all your drainage needs. The 5" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 5" Pro Series Channel Drain Grates is the perfect solution for all your drainage needs.

Quick Look

• Dimensions:Width: 5-1/4" x Length: 19-5/8" x Height: 3/4"
• Compliant with the Americans with Disabilities Act (ADA) standards
• Material: HDPE (High-Density Polyethylene)
• Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per grate, screws sold separately)
• Color: #814 (Light Gray), #815 (Green), #816 (Black), #817 (Sand), #818 (Brick red), #819 (White)
• Fits: 5” Pro Series Channel, Part# 820 ( takes 1 grate) and Part# 800 ( takes 2 grates)
• Grate Opening: 1/2” x 1-1/4”
• Channel grates can be reduced to any lengths
• Recommended for medium-duty tire traffic
• Open Surface Area: 23.52 Sq. Inch per Ft
• 101.75 GPM per foot
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
