NDS 5" Pro Series Channel Grate, Ductile Iron
- Buy 5 for $107.68 each and save 5%
- Buy 15 for $102.01 each and save 10%
Dimensions: Length: 19.75" x Width: 5.25" x Height: 3/4"
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS 5" Pro Series Channel Grate, Ductile Iron

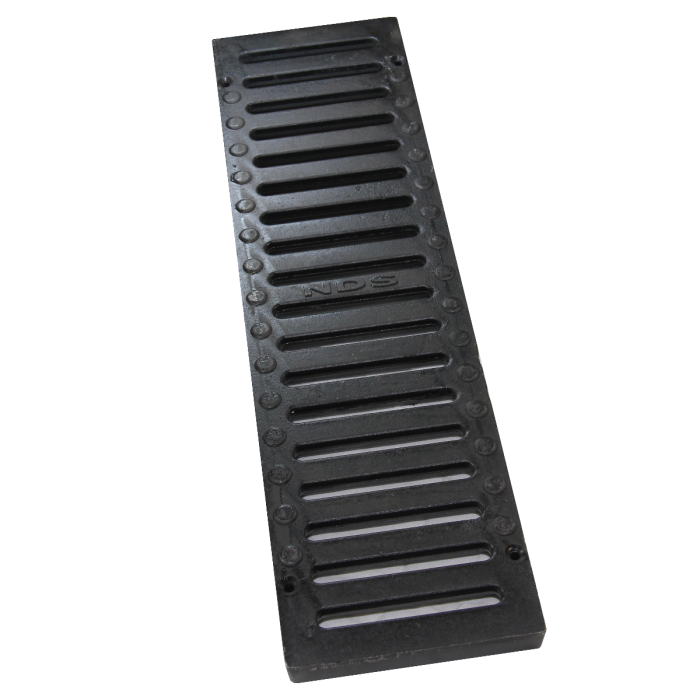

NDS grates are a proven alternative to traditional concrete drains. The NDS 5" Pro Series Channel Grate, Ductile Iron by NDS is part of their 5" pro series trench drain system. Each grate is 19.625" in length and 5.25" in width. NDS recommends that each grate be affixed to the channel with four stainless steel screws to prevent movement. Installed properly, these grates are rated for Class D loads of 326-575PSI. Pro Series trench drain grates are an affordable way to enhance the aesthetic of any hardscape!
Quick Look
- Fits: 5" Pro Series Channel, Part# 820 ( takes 1 grate) and Part# 800 ( takes 2 grates)
- Material: Ductile Iron
- ADA Compliant
- Dimensions: 19-11/16" LENGTH x 5-1/4" WIDTH x 3/4" HEIGHT
- Channel grates can be easily cut to any length
- H-20 Rated
- Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per channel grate, screws sold separately)
- Open Surface Area: 22.90 Sq. Inch per Ft.
- Grate Opening: 9/16" x 3-9/16"
- Load Rating: Class D (326-575 psi)
NDS 5" Pro Series Channel Grate Product Review Blog
Additional Resources
How To Install A NDS Pro Series Channel DrainNDS 5" Pro Series Channel Grate, Ductile Iron Technical Specifications
Will NDS Iron Metal Grates Rust?
NDS Channel Grate Outlet Flow Capacities
Installation Instructions
NDS Channel Drain Installation GuideNDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling End Outlet
NDS 5" Pro Series Installation Detail, 3" and 4" PVC Coupling Bottom Outlet Connection
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension
NSD 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Asphalt
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Rebar Suspension W Pavers
NDS 5" Pro Series Installation Detail, Load Class A and B, 4" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class C and B, 6" Encasement, Wood Member Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Form Board Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Asphalt
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension with Pavers
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Rebar Suspension
NDS 5" Pro Series Installation Detail, Load Class D and B, 8" Encasement, Wood Member Suspension
| Brand | NDS |
|---|---|
| Part Number | 823 |
| Color | Black |
| Length | 19.75" |
| Width | 5.25" |
| Grate Opening | 3/8" x 1-1/4" |
| Open Surface Area | 19.32 Sq. Inch per Ft |
| Gallons Per Minute | 59.1 GPM |
