NDS 5" Pro Series Channel Drain Kit with Metal Grate

Product Details: NDS 5" Pro Series Channel Drain Kit with Metal Grate

The NDS 5" Pro Series Channel Drain Kit with Metal Grate is the ideal solution for all your drainage needs. The channel has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. Each Channel of the NDS Pro Series has been designed to snap end-to-end quickly and easily with robust male-to-female locking clips, making it ideal for long channel runs. The cut guides allow the channel to be shortened by 4-inch increments, making it possible to create smaller interlocking sections. The included end cap and end outlet, combined with the newly integrated second-bottom outlet and side-outlet knockouts, provide a total of eight outlet options per channel section. This increased design and installation flexibility make it easier for you to design and install a system that meets your specific needs. The new side outlets now allow 90-degree, tee, and cross configurations to be made in the field without any specialty accessories. The new strengthened #4 rebar clips along the channel sides allow for quicker and easier installation and increased system strength. The NDS Pro Series Channel Drain Kit is also compatible with the patented NDS Pro Series Qwik-Turn Radius Couplings. This allows you to create curving layouts with up to 6 degrees of deflection between couplings and channels. The NDS 5" Pro Series Channel Drain Kit with Metal Grate Includes 40" channel drain #800, QTY 2 galvanized steel grates #824, 1 end cap #812, 1 end outlet #813, and installation instructions. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 5" Pro Series Channel Drain Kit with Metal Grate is the perfect solution for all your drainage needs. Along the channels, outlets can be attached anywhere, and the system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes.

Quick Look

• Compliant with the Americans with Disabilities Act (ADA) standards
• Material: Channel (Polyolefin) Grates (Galvanized Steel)
• Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per grate, screws sold separately)

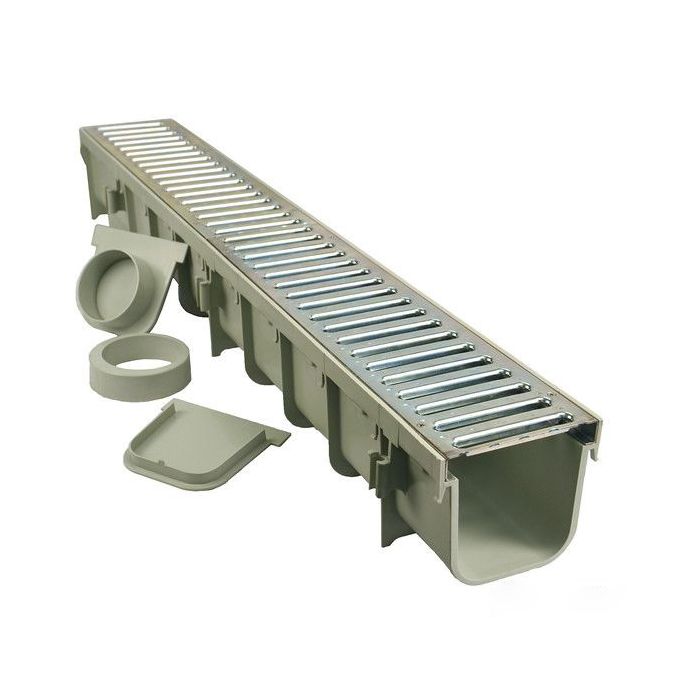

• Includes 40" channel drain #800, QTY 2 galvanized steel grates #824, 1 end cap #812, 1 end outlet #813
• Interlocking channel design for a secure, tight fit
• Includes rebar tie clips for secure fit with #4 rebar
• End outlet fits 3" Sewer & Drain Pipe and 4" Sewer & Drain Fittings
• Grate Opening: 0.45”x 4”
• Knockout bottom outlets fits 3" & 4" Sewer & Drain Fittings
• Channel can be as long as you need, or reduce to lengths as short as 4" for smaller, interlocking sections
• Recommended for medium-duty tire traffic
• Open Surface Area: 19.32 sq. inch per linear ft.
• 83.58 GPM per foot
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
