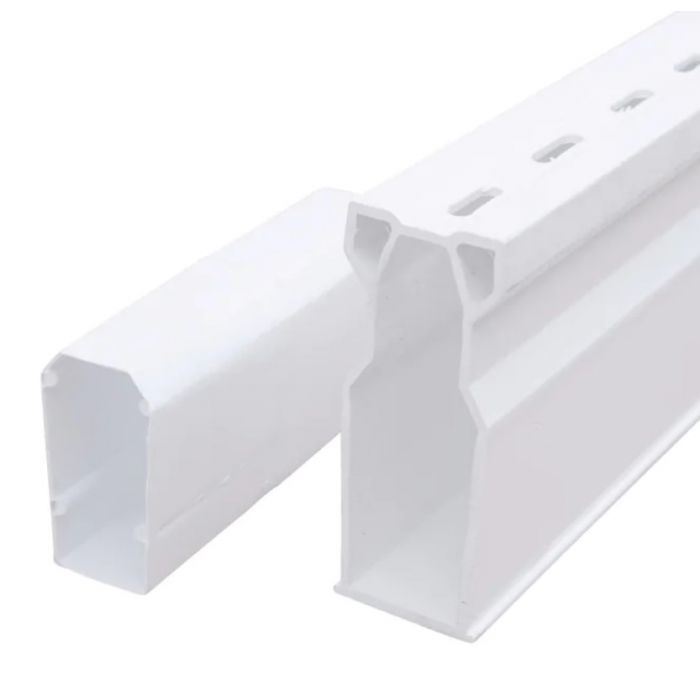

NDS 5 FT Micro Channel Drain - Including 1 Coupling, White

$28.74
In stock
SKU
8001-5

Dimensions: Length: 60" x Width: 1-1/4" x Height: 3-1/4"


Includes: One 5 Ft NDS Micro Channel Drain & One NDS Micro Channel Coupling


Call in directly to 803-324-3225 for a personalized quote.

Product Details: NDS 5 FT Micro Channel Drain- Including 1 Coupling, White

The NDS 5 FT Micro Channel Drain- Including 1 Coupling, White is part of the NDS Micro Channel Series. Channel drains are used to prevent runoff flows before it lingers and grows slippery mildew, causing deck stains, eroding property, and other costly structural damage. Micro Channel Drain and grate come as one integrated part for an easy installation. This product is manufactured with polyvinyl chloride; which is to be connected with internal couplings (NDS #8481). The modular design makes it easy to add attachments such as 45º and 90º elbows, and also bottom, side, and end outlets. For maintenance, the Micro Channel does not have a removable grate; instead, the Micro Channel System is reliant on special clean-out sections (NDS #8651) to keep the system clear of obstructions.

Quick Look

  • UV Inhibitors To Prevent Fading Or Cracking
  • High Density Polyethylene
  • 1-1/2" Sch. 40 Spigot End Outlet, requires end, side, or bottom outlet
  • 1.0 sq. in. per linear ft. open surface area.
  • Grate Opening: 3/16" x 5/8"
  • 3 GPM per ft. flow rate
  • Includes one 5FT Micro Channel Drain and one NDS Micro Channel coupling
  • ADA Compliant
  • Load Recommendation: Class A Load Rated (1-60 PSI)
  • Call In Directly for our NDS 10 FT Micro Channel Drain Pricing
Shop the entire line of NDS Micro Channel Products

Additional Resources

NDS 5 FT Micro Channel Drain- Including 1 Coupling, (White) Technical Specifications
Solution To Stormwaters
How To Install A NDS Micro Channel Drain
Load Class Rating Guide

Installation Instructions

NDS Micro Channel Drain - Schedule 40 Bottom Outlet Installation Detail
NDS Micro Channel Drain - Schedule 40 Side Outlet Installation Detail
NDS Micro Channel Drain - Installation Detail for Pedestrian Traffic
More Information
Brand NDS
Part Number 8001-5
Length 5 FT
Width 1-1/4"
Height 3-1/4"
Weight 5 LBS
Color White
