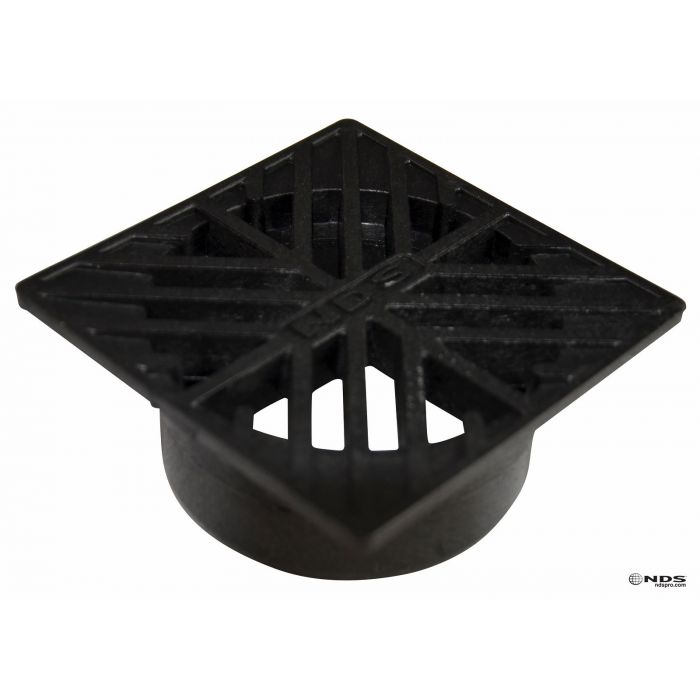

NDS 4" Square Grate - Black
Dimensions:Length: 3-9/16" x Width: 3-9/16" x Height: 1-5/16"
Color:Black (#2), Gray (#3), Green (#1)
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS 4" Square Grate - Black
The 4" Square Grate is part of the NDS drainage system. As a proven alternative to traditional concrete drains, NDS grates feature UV inhibitors that prevent fading and cracking from the sun. These chemical-resistant and rustproof grates are maintenance-free, lightweight, and easy to install. This grate helps to collect and remove excess water from driveways, patios, and any other outdoor areas, designed for maximum durability to handle light foot traffic. Can be used with 3" Sewer & Drain Pipe and Fittings, 3" Corrugated Pipe, and 3" Triple Wall Pipe.
Quick Look
- (HDPE) High Density Polypropylene
- Fits 3†sewer and drain pipe & fittings, 3†corrugated and triple wall pipe
- Open Surface Area: 3.45 Sq. Inches
- Grate Opening: 3/16â€
- UV Inhibitor
- Class A Load Rated (1-60 PSI)
- 14.93 GPM Capacity
- ADA Compliant
- Product Class: 10ND
Additional Resources
How To Fix A Downspout ProblemNDS 4" Square Grate Technical Specifications Sheet
How To Use A NDS Drain On Landscapes
| Brand | NDS |
|---|---|
| Part Number | 2 |
| Color | Black |
| Length | 3 9/16" |
| Width | 3" |
| Height | 1 5/16" |
| Grate Opening | 3/16" |
| Open Surface Area | 3.45 square inches |
| Gallons Per Minute | 10.55 |
