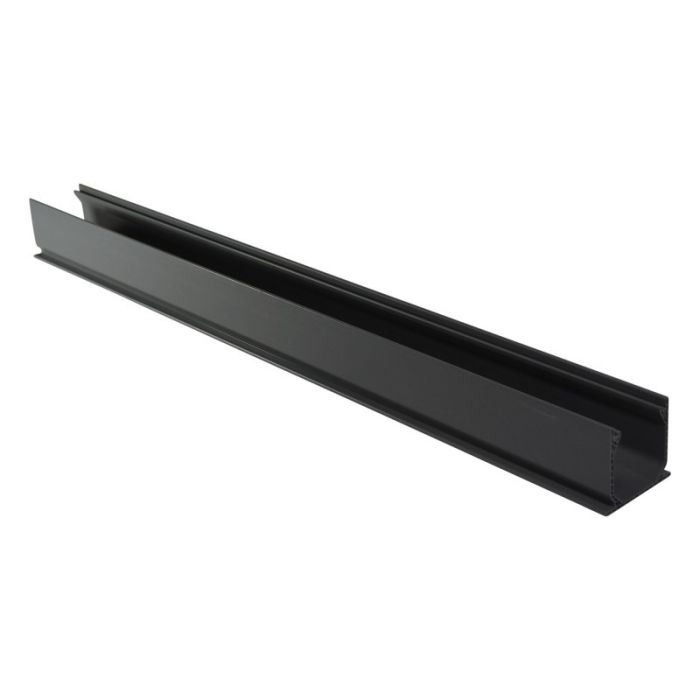

NDS 3' Mini Channel With 2" Spigot Bottom Outlet

Product Details: NDS 3' Mini Channel With 2" Spigot Bottom Outlet

NDS 3' Mini Channel With 2" Spigot Bottom Outlet is an efficient solution for removing water from hardscapes and directing it away from building structures. This product is ideal for both residential and non-residential projects. It is a cost-effective alternative to the NDS Spee-D Channel and is suitable for light-duty applications such as pools, patios, spas, and tennis courts. The NDS 3' Mini Channel With 2" Spigot Bottom Outlet provides a pipe connection at the bottom of the channel to allow 2" pipe to be connected to allow the collected stormwater to be drained out of the drainage system. As part of the NDS Mini Channel Drainage Series, it is a durable and stylish option for managing moderate drainage water. Upgrade your outdoor space with the NDS Mini Channel Drainage system for reliable and effective water management. NDS Mini Channel Fabricated Tee With Grates is a proven better alternative to traditional concrete drains that can be used for commercial and residential applications.

Quick Look

• There are two options to drain the water out of the Mini Channel; the end of the channel or the bottom of the channel. Each outlet connects to a 2” schedule 40 pipe. The bottom drain channel comes with an atrium grate pre-inserted in the channel to prevent debris from entering the storm drain system
• Use With NDS Mini Channel Products
• To be connected together to other accessories the Mini Channel Couplings (NDS Part #548) will be required
• PVC glue can be used to glue all components together
• Dimensions: 36" LENGTH x 3-1/16" WIDTH x 4-1/2" HEIGHT
• ADA Compliant
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)
• Equipped with an atrium grate pre-inserted in the 3' channel to prevent debris from entering the storm drain system
