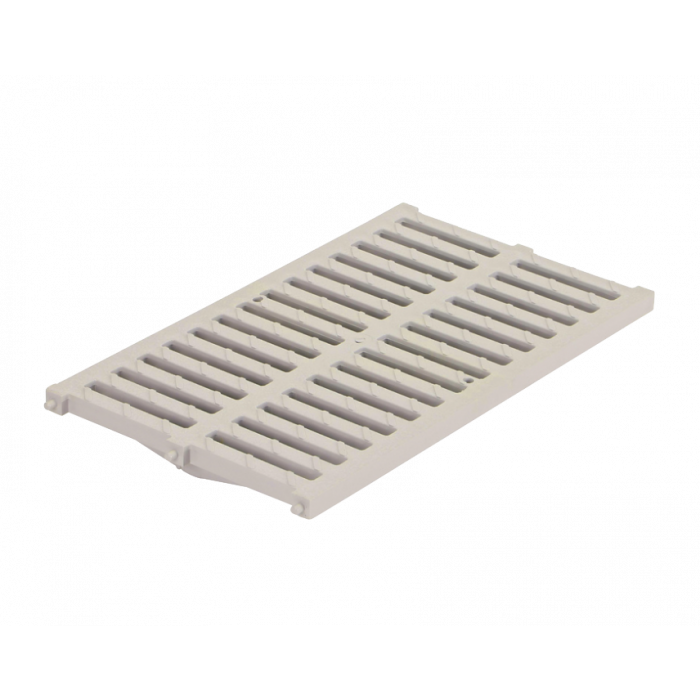

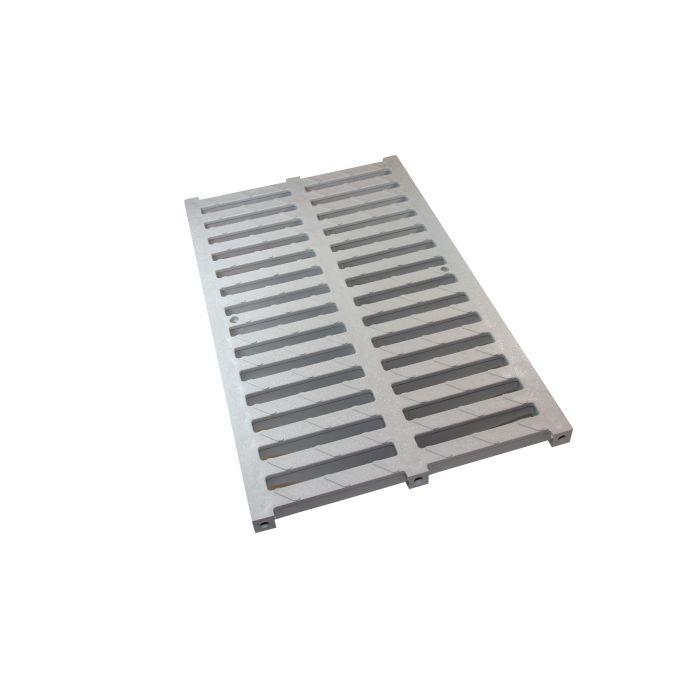

NDS 12" Pro Series Light Traffic Channel Grate
Dimensions: Legnth: 19-5/8" x Width: 11-3/4" x Height: 3/4"
Call in directly to 803-324-3225 for a personalize quote.
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS 12" Pro Series Light Traffic Channel Grate
The NDS 12" Pro Series Channel Grate is the ideal solution for all your drainage needs. The NDS 12" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 12" Pro Series Channel Grate is the perfect solution for all your drainage needs.
Quick Look
- Use With NDS 12" Pro Series Products
- All accessories are sold separately
- NDS 12" Pro Series grates material include: Plastic & Iron
- Dimensions: 19-5/8" LENGTH x 11-3/4" WIDTH x 3/4" HEIGHT
- Open Surface Area: 48.77 Sq. Inches Per Foot.
- Channel grates can be easily cut to any length
- ADA Compliant
- Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
- Material: UV Protected High-Density Polyethylene (HDPE)
Additional Resources
How To Install A NDS Pro Series Channel DrainNDS 12" Pro Series Light Traffic Channel Grate Grate Technical Specifications
NDS 12" Pro Series Deep Profile Channel Drain Technical Specifications
Installation Instructions
NDS 12" Pro Series Channel Drain Installation Detail Landscape Traffic 4" Concrete AbutmentNDS 12" Pro Series Channel Drain Installation Detail Load Class A & B 4" Encasement Brick Rebar Suspension
NDS 12" Pro Series Channel Drain Installation Detail Load Class C 6" Encasement Brick Rebar Suspension with Pavers
NDS 12" Pro Series Channel Drain Installation Detail Load Class C 6" Encasement Brick Rebar Suspension
NDS 12" Pro Series Channel Drain 4" End Outlet Plumbing Connection Installation
| Brand | NDS |
|---|---|
| Part Number | 847 |
| Color | Gray |
| Length | 19-5/8" |
| Width | 11-3/4" |
| Grate Opening | 5/8 x 4-3/4" |
| Open Surface Area | 48.77" Sq/FT |
| Gallons Per Minute | 149.19 GPM |
