FILCOTEN TEC V 100 Trench Drains

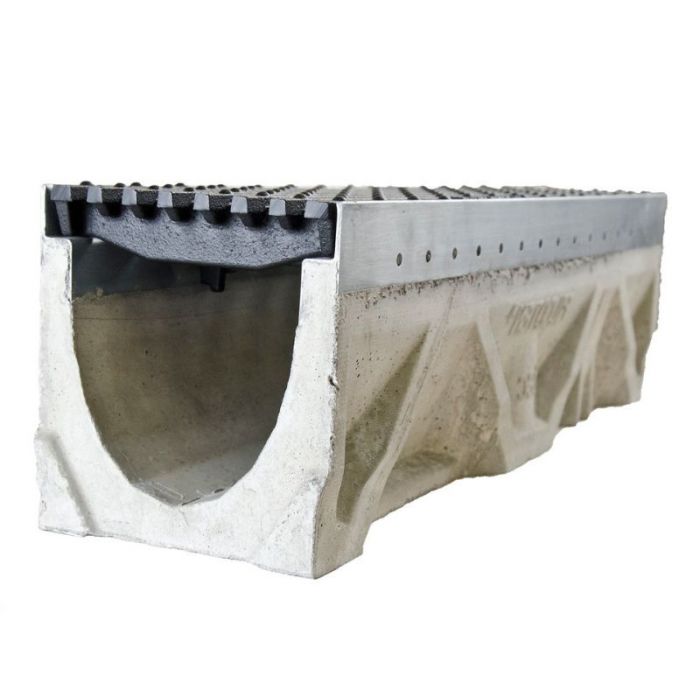

Product Details: FILCOTEN Tec V 100 Channel

FILCOTEN by NDS is a trench drain system that captures and conveys stormwater on commercial and residential sites. FILCOTEN channel sections are made from industry-leading high-performance fiber-reinforced concrete which is stronger, lighter, and more durable than the competition. FILCOTEN's innovative material is 100% recyclable, contains 0% harmful substances, is non-flammable, and cannot be damaged due to temperature changes or UV exposure. The high density of fiber in this concrete allows FILCOTEN to withstand impacts and support heavy loads, making it quintessential for any application!

Versatility with NDS FILCOTEN Trench Drains

• Commercial Applications: High-performance fiber-reinforced concrete withstands heavy foot traffic and daily wear and tear
• Industrial Projects: Durable design and impact resistance make NDS FILCOTEN ideal for all industrial projects
• Garages/Parking Lots: Easy to install and maintain, preventing damage to vehicles and infrastructure
• Residential Developments: Ensure homes and residential properties stay safe and dry

Drainage Connect offers a full line of FILCOTEN products to complete any project. The FILCOTEN Tec V 100 Channel line comes in both pre-sloped and neutral sections that can be used with any FILCOTEN 100 series grate or accessory. For projects that require more water to be managed FILCOTEN Pro V 200 and Pro V 300 suit best

Quick Look

• Rail Material: Galvanized Steel
• 20 Pre-Sloped Channel Sections (0.5% #1-20) & 4 Neutral Channel Sections
• 0.5% Slope each sloped channel section
• Outlets can be configured as Bottom, End Outlet or use with a Catch Basin
• ADA Compliant
• Used for capturing and redirecting excess water to safe locations
• Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
• Dimensions: 39.37" LENGTH x 5.1" WIDTH x 5.31" to 7.28" INNER DEPTH HEIGHT
• Load Recommendation: Varies on grate selection (Up to Class E)
• Material: High-Performance Fiber Reinforced Concrete
• Manufactured to EN1422 Standards
• The longest sloped channel run with a catch basin in the middle can reach a distance of 135 linear feet
• The maximum run length with all sloped channel drains, one neutral-slope channel drain, and a central catch basin is 162 linear feet
• 100% recyclable/ 0% harmful substances. Sustainable solution without VOCs or heavy-metal residue that can leach into the ground. Qualifies for LEED credits
• Connection Features: Bottom outlets are eligible to be included on every channel drain section
• The inclusion of a sealant groove in this drainage system allows for a watertight connection between channels, enhancing the system's overall effectiveness in preventing water leakage
• Connection to Grating: NDS 4-point locking system with Vandal Lock is available
