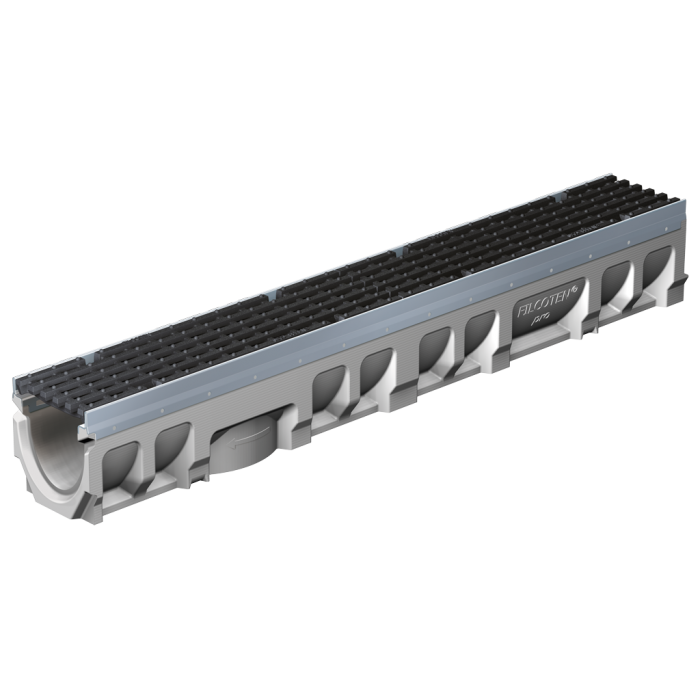

FILCOTEN PRO V 200 Trench Drains - Channel 5-0 Without Slope

Product Details: FILCOTEN Pro V 200 Trench Drains

FILCOTEN by NDS is a trench drain system that captures and conveys stormwater on commercial and residential sites. FILCOTEN channel sections are made from industry-leading high-performance fiber-reinforced concrete which is stronger, lighter, and more durable than the competition. FILCOTEN's innovative material is 100% recyclable, contains 0% harmful substances, is non-flammable, and cannot be damaged due to temperature changes or UV exposure. The high density of fiber in this concrete allows FILCOTEN to withstand impacts and support heavy loads, making it quintessential for any application!

FILCOTEN can be used on a variety of sites, including but not limited to:

• Commercial projects
• Industrial complexes
• Parking lots
• Residential developments

Drainage Connect offers a full line of FILCOTEN products to complete any project. The FILCOTEN Pro V 200 Channel line comes in both pre-sloped and neutral sections that can be used with any FILCOTEN 200 series grate or accessory. The FILCOTEN Tec V 200 Channel line For projects that fairs amounts of water to be managed, The FILCOTEN Pro V 300 is best for large amounts while the Pro V 100 is best for smaller projects

Quick Look

• High Performance Fiber Reinforced Concrete
• ADA Compliant
• Load Rated: Up to Class E With Appropriate Grate
• Product Class: 25FC
• Rail Material: Galvanized Steel
• 100% recyclable/ 0% harmful substances. Sustainable solution without VOCs or heavy-metal residue that can leach into the ground. Qualifies for LEED credits
• Connection Feature: Bottom outlet possible on every channel
• Sealant Groove to facilitate a water tight fit between channels
• Connection to Grate: 4 point locking system with Vandal Lock available
